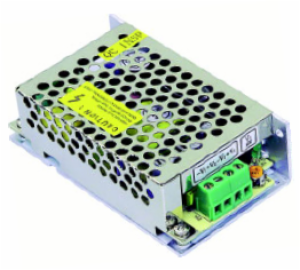

5 Volt / 12 Volt Dual Output Switching Power Supply
Item#: HF10W-DL-B
Individual Product Details:
This is a dual output power supply that operates with 85~264VAC input. Outputs are +5VDC at up to 1.8 Amps & +12VDC at up to 0.3 Amps.
- Brand: HengFu
- Universal AC input / full range
- High reliability
- Approvals: ETS/EMC/ CE
- 100% full load burn-in test
- Protections: overload/ over voltage/ short circuit
- V1 is isolated from the other output
- 1 year warranty
- F601 100 x 58 x 31(mm)
| AC input voltage range | 85~264VAC (120~370VDC) |
| Inrush current | cold start, 15A/115V, 30A/230V |
| Input leakage current | 0.5mA/ 230VAC |
| Line regulation (full load) | 0.5% |
| Load regulation |
V1: 0.5%, V2: 3% (with regulator); 6% (without) |
| Output voltage adjust range | V1: 5% of rated output voltage |
| Output overload protection | 110~150% |
| Output over voltage protection | 115~150% |
| Withstand voltage |
I/P -O/P: 3.0KVAC/1min;I/P -F/G: 1.5KVAC/1min O/P-F/G: 0.5KVAC/1min |
| Rise, Hold up time | 50ms, 20ms@full load (typical) |
| Operating temp. & humidity | -10 ~+50 , 20%~93%RH (non condensing) |
| Storage temp. & humidity | -20 ~+85 , 20%~95%RH (non condensing) |
| Safety standards | GB4943, UL60950, EN60950 |
| EMC standards |
GB9254, EN55022 classB, EN55024 EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Cooling method |
convection |
Unit Size - Click on image to enlarge
