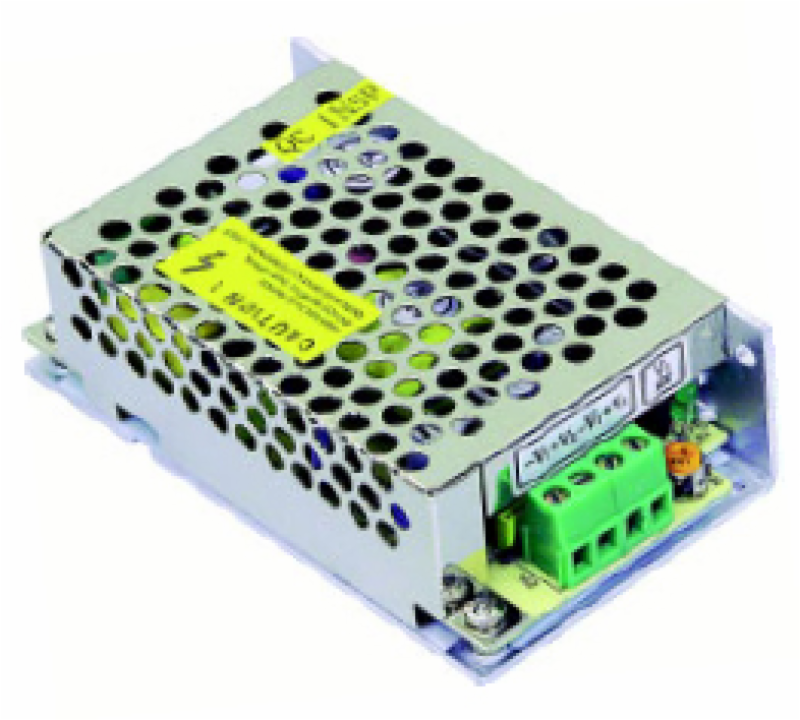

5 Volt / 24 Volt Dual Output Switching Power Supply

Availability:

20 In Stock

Item: HF10W-DL-D

Quantity :

5 Volt / 24 Volt Dual Output Switching Power Supply

This is a dual output power supply that operates with 85~264VAC input. Outputs are +5VDC at up to 1.0 Amps & +24VDC at up to 0.2 Amps.

AC input voltage range	85~264VAC (120~370VDC)
Inrush current	cold start, 15A/115V, 30A/230V
Input leakage current	0.5mA/ 230VAC
Line regulation (full load)	0.5%
Load regulation	V1: 0.5%, V2: 3% (with regulator); 6% (without)
Output voltage adjust range	V1: 5% of rated output voltage
Output overload protection	110~150%
Output over voltage protection	115~150%
Withstand voltage	I/P -O/P: 3.0KVAC/1min;I/P -F/G: 1.5KVAC/1min O/P-F/G: 0.5KVAC/1min
Rise, Hold up time	50ms, 20ms@full load (typical)
Operating temp. & humidity	-10 ~+50 , 20%~93%RH (non condensing)
Storage temp. & humidity	-20 ~+85 , 20%~95%RH (non condensing)
Safety standards	GB4943, UL60950, EN60950
EMC standards	GB9254, EN55022 classB, EN55024 EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11
Cooling method	convection
