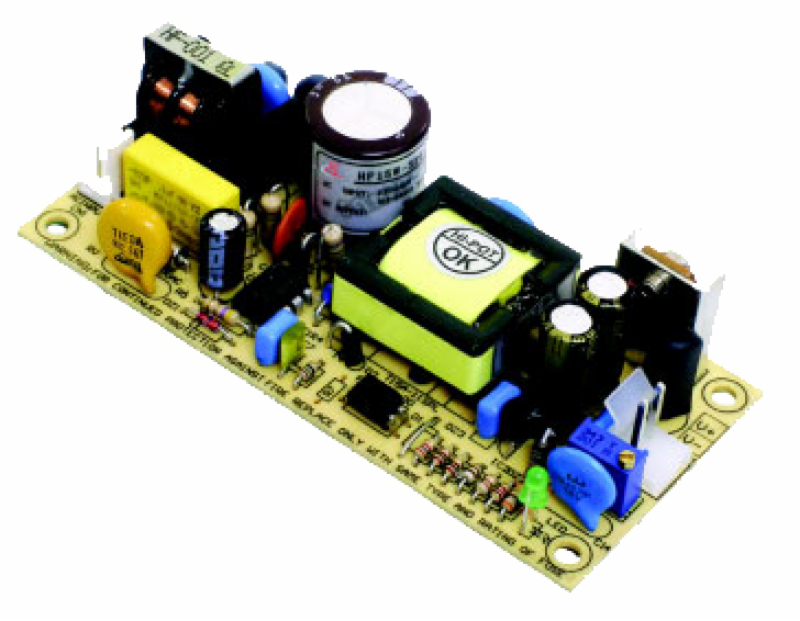

48V Power Supply - 0.32A Single Output - Open Frame
Availability: 30 In Stock
Item: HF15W-SPL-48
Quantity      Price
1      $ 15.990
10      $ 13.590
100      $ 12.390
Quantity :
48V Power Supply - 0.32A Single Output - Open Frame

Add To Cart

Continue Shopping
DC Output Load regul. R&N Efficiency
48V     0.32A 0.5% 200mV 77%
  • Brand: HengFu
  • Universal AC input / full range
  • High reliability
  • 15 Watts
  • Miniature PCB structure
  • 100% full load burn-in test
  • UL approved
  • Protections: overload/ over voltage/over temperature/ short circuit
  • Free air cooling convection
  • 1 year warranty

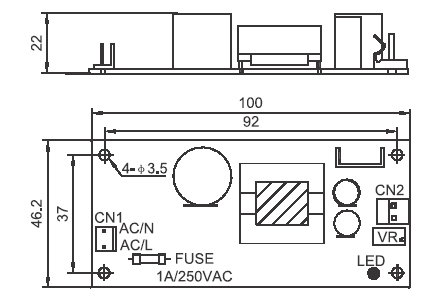

  • 100 x 46.2 x 22(mm)
AC input voltage range 85~264VAC (120~370VDC)
Inrush current cold start, 15A/115V, 30A/230V
Line regulation (full load) <+/- 0.5%
0.5% +/- 10%
Output overload protection 110~150%, hiccup mode, auto recovery
Output over voltage protection 115~150%
Over temp. protection IC, Tj: 135 , power shutdown
Withstand voltage I/P-O/P: 3.0KVAC/1min;I/P-F/G: 1.5KVAC/1min
O/P-F/G: 0.5KVAC/1min
Rise, Hold up time 50ms, 20ms@full load (typical)
Operating temp. & humidity -10 ~+50 , 20%~93%RH (non condensing)
Storage temp. & humidity -20 ~+85 , 20%~95%RH (non condensing)
Safety standards GB4943, UL60950, EN60950
EMC standards meet GB9254, EN55022 classB, EN61000
Connection 2P/ 2.54mm, 2P/ 3.96mm pitch
