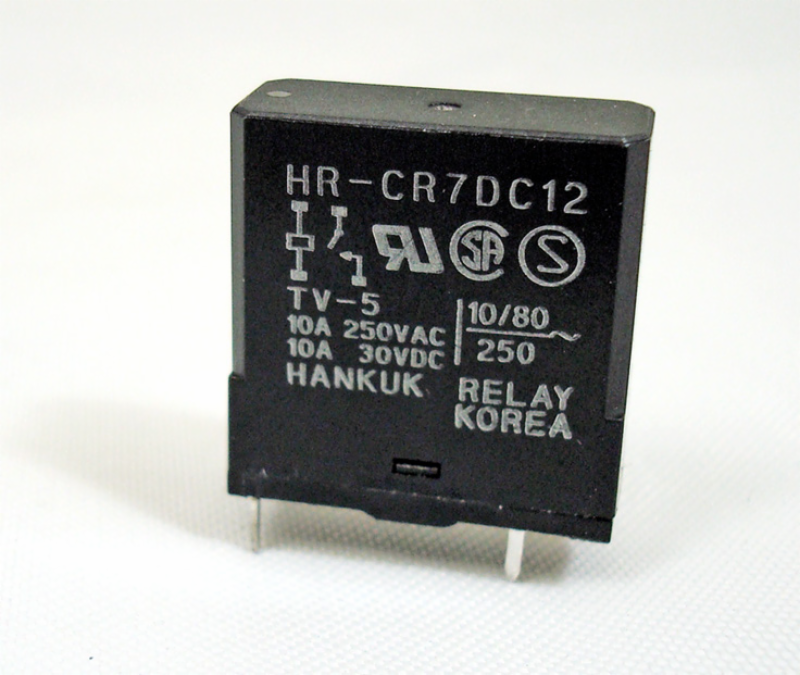

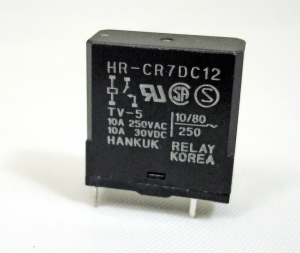

Slim SPST, 10A High Isolation Structure Relay

Features:

• High noise immunity due to the partition wall structure
• High insulation resistance between contacts and coil: 10,000V, creepage and clearances distance: 6mm
• High inrush current capability strength
• Universal foot print in AV equipment
• Conforms to various safety standards
• Space-saving slim type
• Manufactured by Hankuk

Specifications:

• Nominal voltage: 12VDC
• Coil resistance: 273 Ω ± 10%
• Nominal current: 44mA
• Must operate voltage: 9VDC
• Must release voltage: 1.2VDC
• Max voltage: 15.6VDC
• Nominal power: 530mW
