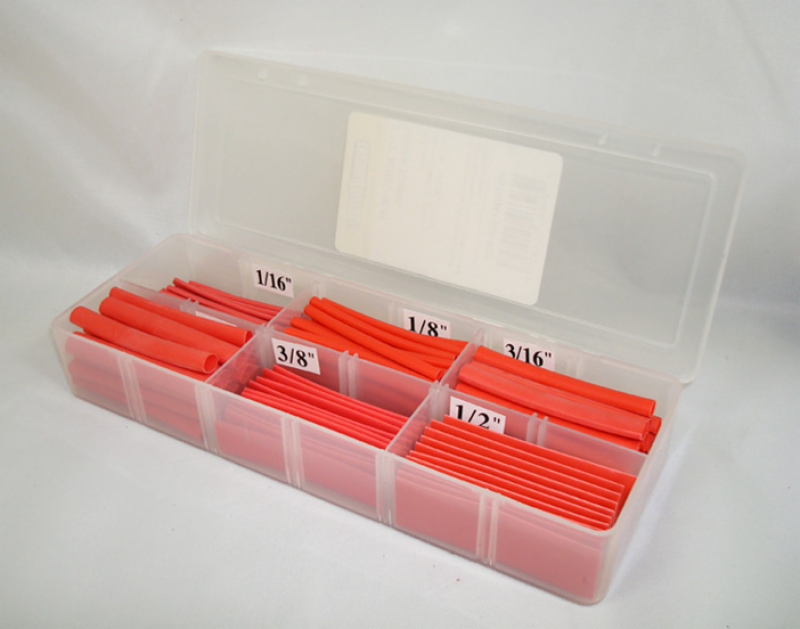

2-1/2" x 158PC/RED Boxed Polyolefin Heat Shrink

• All RED, 2-1/2" - 158 Count, (60)1/16", (40)1/8", (20)3/16", (18)1/4", (10)3/8", (10)1/2"
• RoHS Compliant
• UL & CSA certified at 600V@125°C
• Shrink Temperature: 90-120°C (194°-248°F)
• Operating Temperature Range: -55°-125°C (-67°-257°F)
• Radial Shrink Ratio: 2:1
• Longitudinal Change(%): ±5
• Tensile Strength(MPa): 10.4
• Ultimate Elongation Ratio(%): >200
• Dielectric Strength(kV/mm): >15
• Flammability: VW-1
• Concentricity(%): >65

Thermosleeve tubing is a flexible heat shrinkable tubing designed for the commercial market. The typical properties are flame-retardant, good resistance to common fluids and solvents and a high dielectric strength. It is suitable for a wide range of applications including electrical insulation, strain relief, cable bonding, color-coding and identification of wires, cables, pipes and electrical and electronic components. It has gained UL 125°C (257°F) recognition and the potential rating is 600V. The UL file is E180908.
