AARDVARK WIRELESS INSPECTION CAMERA WITH TWO CAMERAS

Inspection Camera

Item no. AARDVARK II
$199.00


Product discontinued

Overview

Inspection Camera

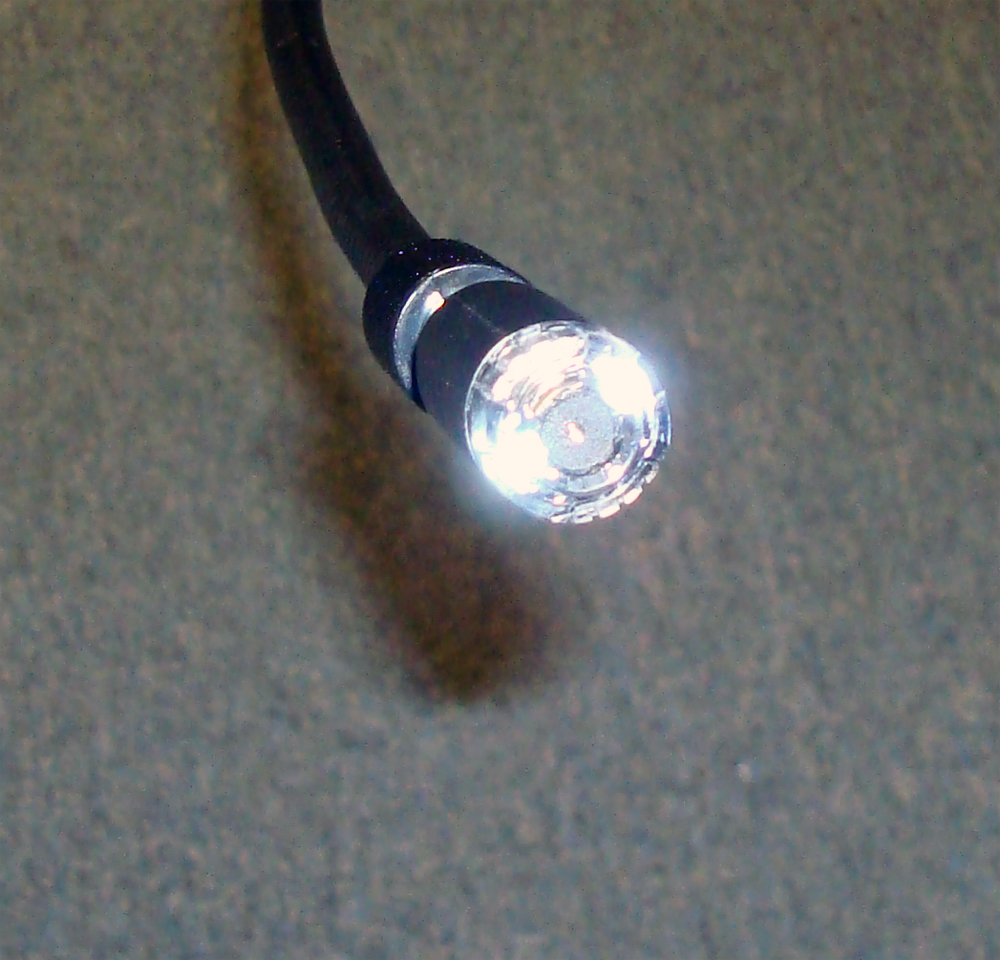

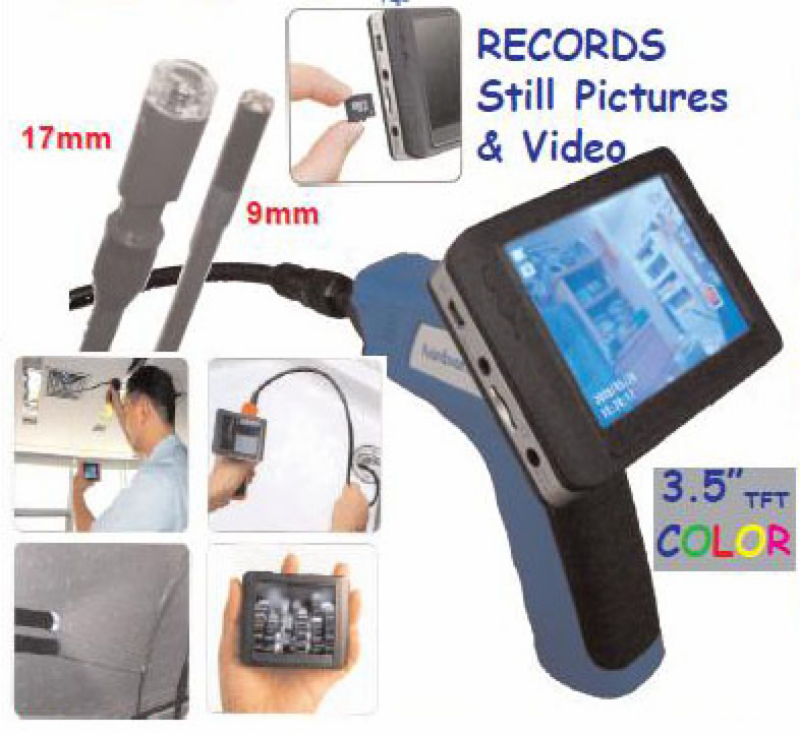

Now Included, both  17mm & 9mm inspection camera heads

2 GB uSD card, mirror, pickup magnet, pickup hook,

 magnetic monitor base all in a deluxe clam-shell

 case!!



Aardvark II

Wireless Inspection Camera System

with Two Cameras

 With Color 3.5" LCD Recordable Monitor



Your Extended Eyes & Hands!

See It!

Clearly in narrow spots, even in total darkness or underwater. This inspection camera Includes both a 17mm inspection camera head with handy accessories, and a 9mm inspection camera head also with accessories for inspecting areas previously inaccessable with larger inspection cameras.

Find It!

Fast. No more struggling with a mirror & flash light. The Aardvark Inspection Camera gets into previously unreachable  locations

Solve It!

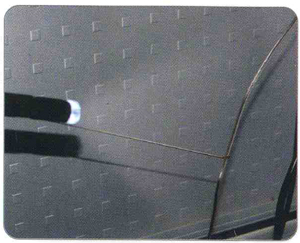

Easily, speed up the solution with extended accessories. This Aardvark inspection camera includes spring pici up tool, mirror & magnet fittings

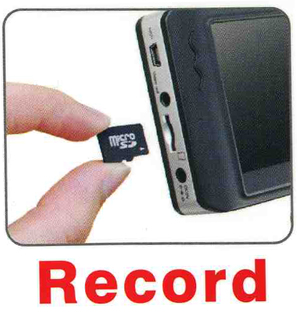

Record It!

With the 3.5" LCD recordable monitor, this inspection camera can capture still pictures or record the video for documentation purposes.

Compare It!

With the General Tools & Instruments Seeker 400  inspection camera at $329.95

Or the Extech Wireless Video Borescope BR200 inspection camera at $299.99

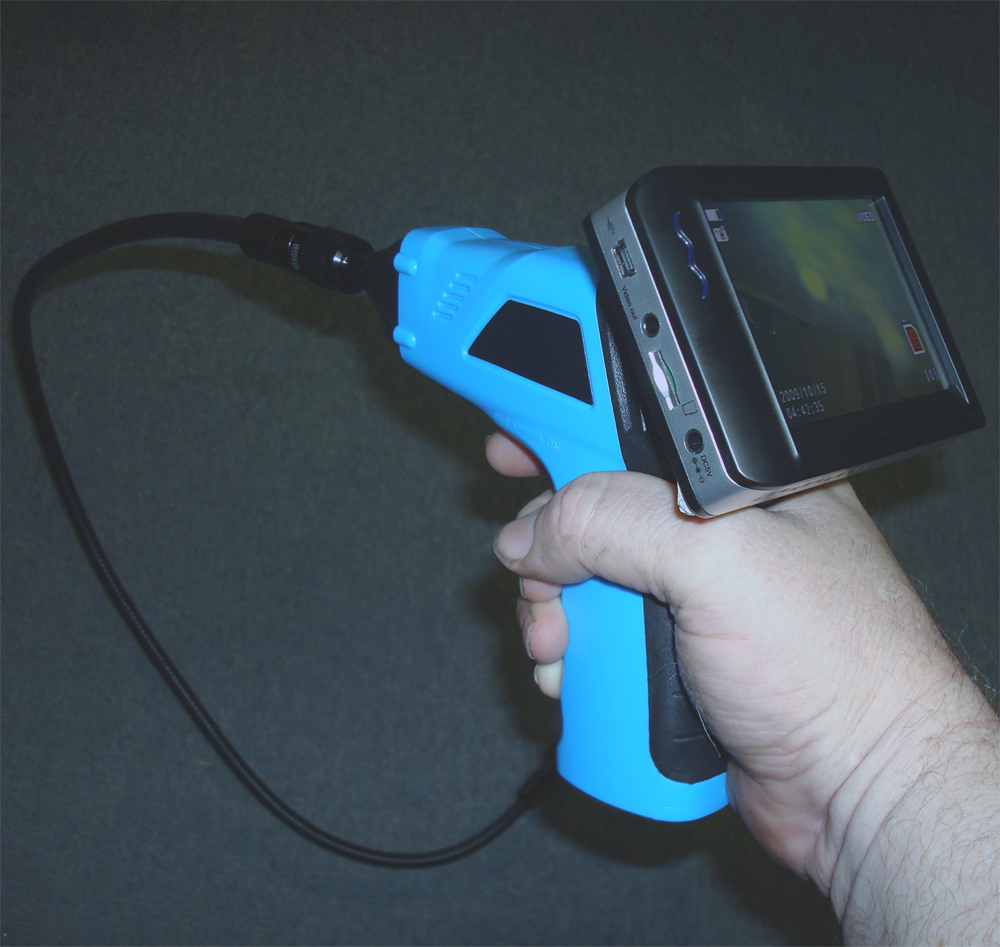

The Aardvark Wireless Inspection Camera is an inspection camera with a 3.5 inch color LCD monitor and a 3ft flexible shaft. The flexible shaft makes the Aardvark inspection camera great for inspecting hard to reach or confined areas like sink drains, AC Vents, engine compartments or anywhere space is limited. The monitor is wireless and may be separated from the main unit for ease of operation. A handy magnetic mount is included with the inspection camera for when you decide to separate the monitor from the main handle.  Still pictures or video can also be recorded and stored on a 2GB MicroSD card (included), and this inspection camera will work with up to a 16GB card. The Aardvark 17mm inspection camera head comes with attachable mirror, magnet and hook accessories to make seeing or retrieving small items easier. The Aardvark's 9mm inspection camera head is ideal for inspecting areas previously unaccessaible to your Aardvark's standard 17mm inspection camera head. The included 9mm inspection camera head also has a set of the same accessories designed to fit its narrower shaft. The Aardvark inspection camera monitor also has connections for composite video output for a larger monitor/recorder and USB interface for computer connection. You can also purchase additional monitors for remote monitoring while still maintaining the primary monitor on the inspection camera handle. Also included is an AC adapter/charger, video cable and USB cable. Optional 3 ft flexible extensions are available to extend the Aardvark inspection camera's reach (Up to 5 may be added for a total reach of 18 feet!). Also, a 5 meter version is available. The magnetic base (included) allows positioning the detachable monitor for the inspection camera on metal surfaces for easier viewing. A handy deluxe clam-shell carry case with form fitting cut outs for all parts including room for 2 extra extension shafts is also included (extra extension shafts not included).



Now including both a 17mm & 9mm  inspection camera heads!!




Aardvark's possible uses

Facility Inspection

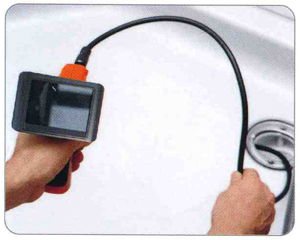

Plumbing Inspection

Pipe Inspection

Wall Inspection

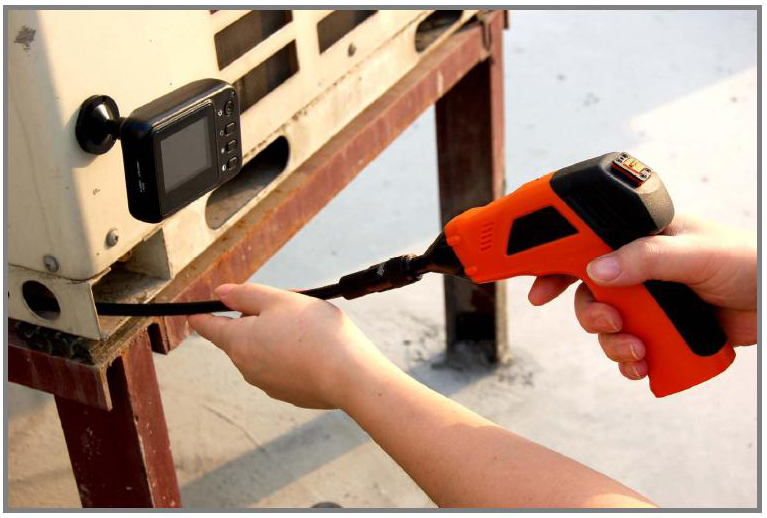

Machine Inspection

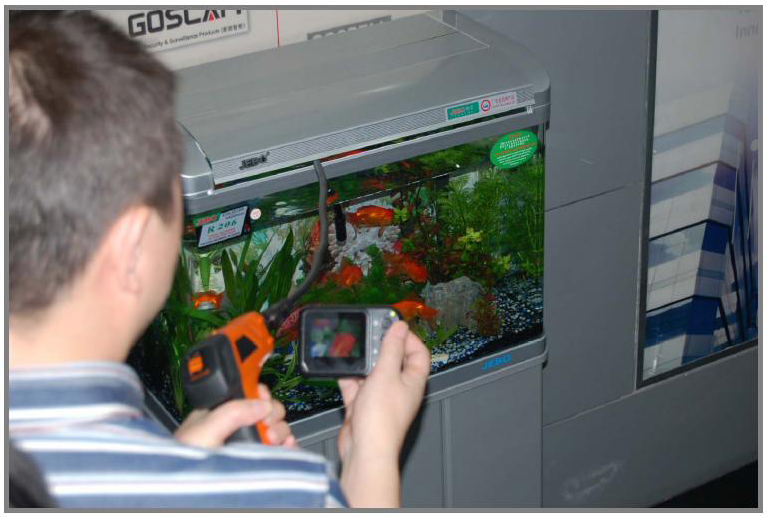

Checking Into Water

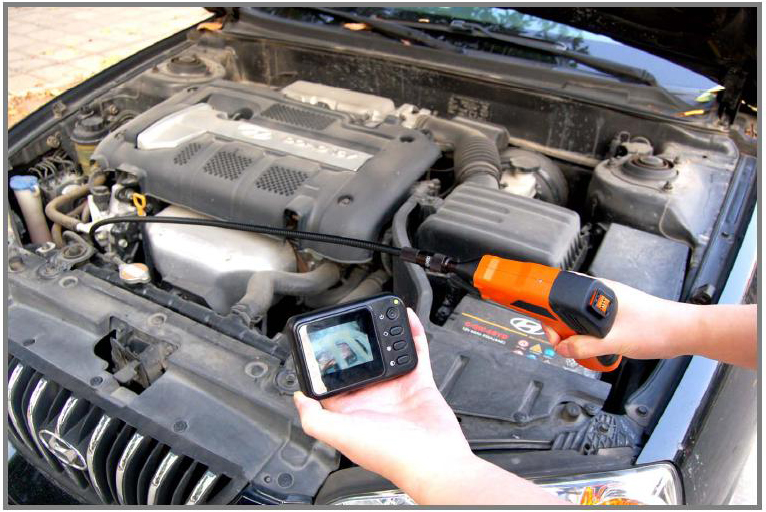

Automotive Inspection

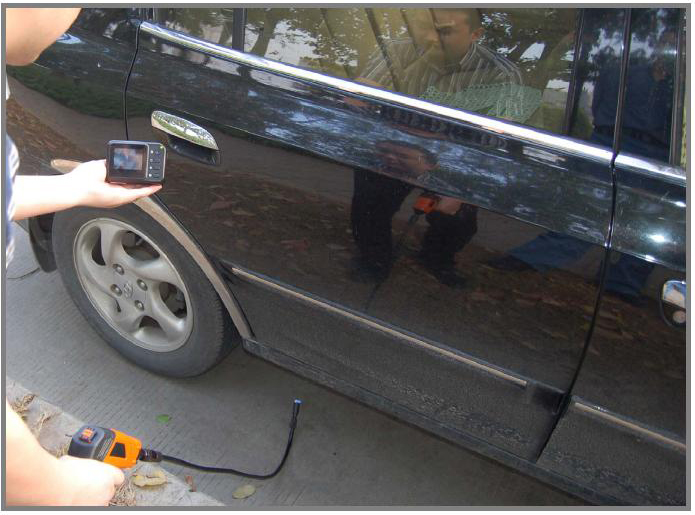

Under Car Inspections

Appliance Inspection

Aardvark User Manual

Aardvark Specifications
Camera
Imaging Sensor CMOS
Total Pixels 712x486 (NTSC)
Horizontal View Angle 50 degree
Transmission Frequency 2468 MHz
Minimum Illumination 0 Lux
Modulation Tyoe FM
Bandwidth 18 MHz
Power Supply 4 x AA batteries
Unobstructed Effective Range 10m
Waterproof Capacity IP67 (only for imager head)
Dimensions (W x D x H) 186 x 145 x 74(mm) (excludes flexible shaft)
Camera Diameter Both 17mm & 9mm Camera heads included
Weight 530g (approx.)
Monitor
LCD Screen Type 3.5" TFT-LCD
Effective Pixels 320 (R.G.B.) x 240
Video System NTSC/PAL
Transmission Frequency 2414MHz, 2432MHz, 2450MHz, 2468MHz
Power Supply Voltage 5V DC
Curren Consumption (Max.) 500mA
Charge Time 3 hours
Work Time 2 hours
Picture/Video Pixels 640 x 480
Video Size 27M byte/minute
Frame Rate 30 Frames per second
Video Output Level 0.9-1.3V p-p @ 75ohm
Receiving Sensitivity <-85dBm
Dimensions 100 x 70 x 25(mm)
Weight 140g (approx.)
Operating Temperature +14oF`+122oF / -10oC`+50oC
Operating Humidity 15%~85% RH

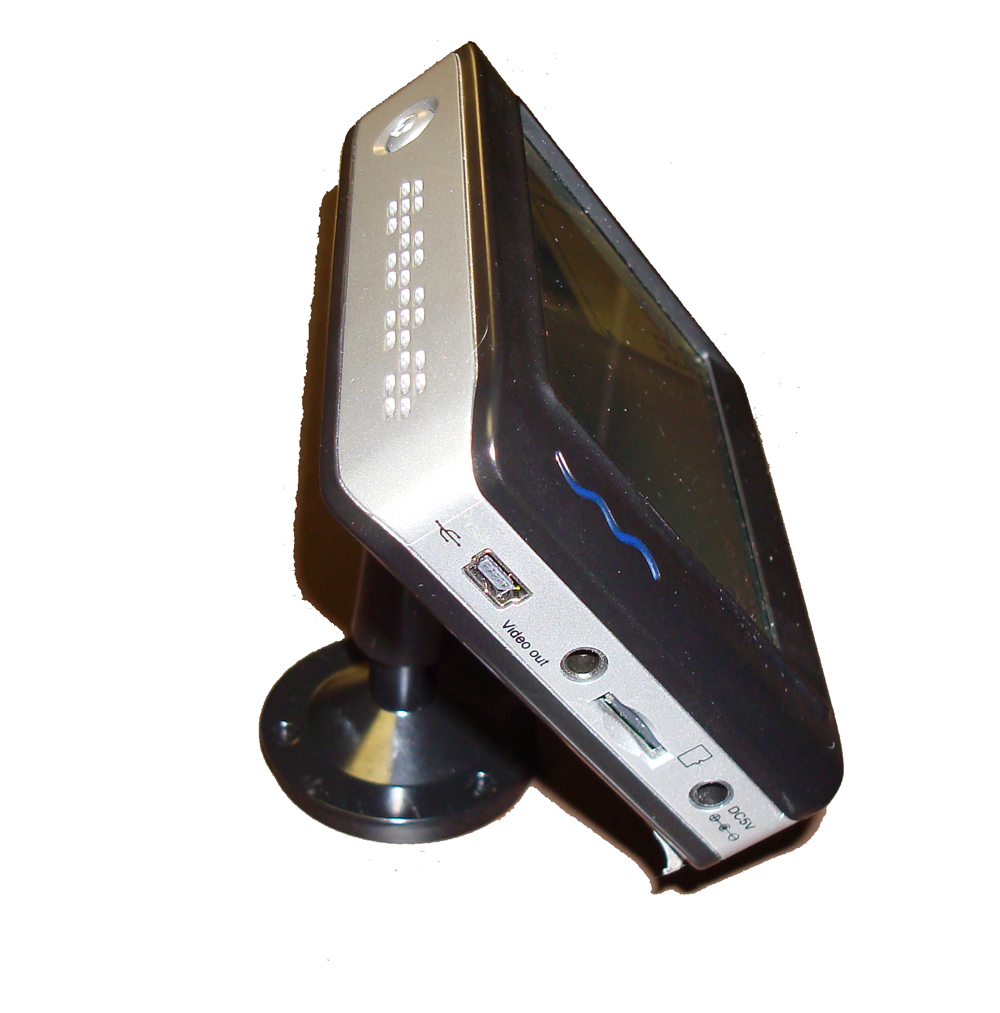

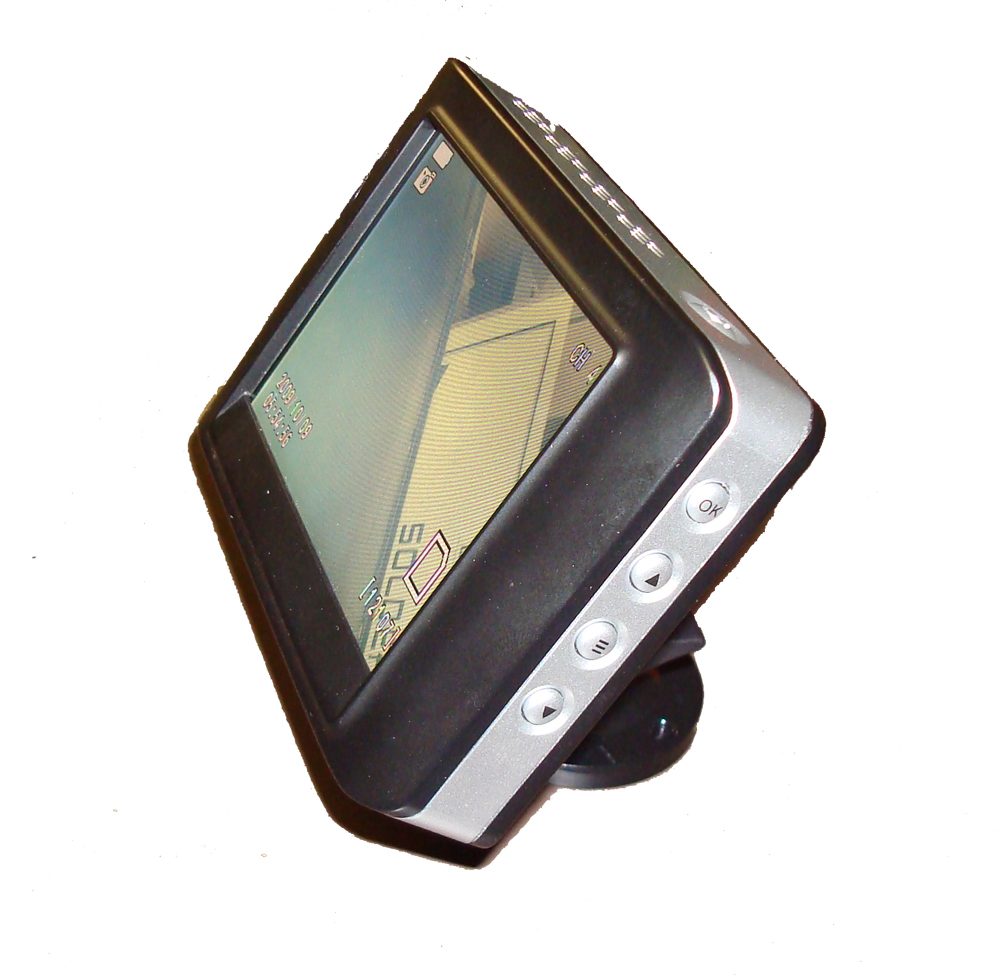

(Monitor shown with magnetic base installed)

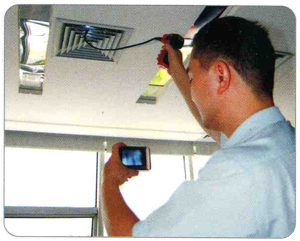

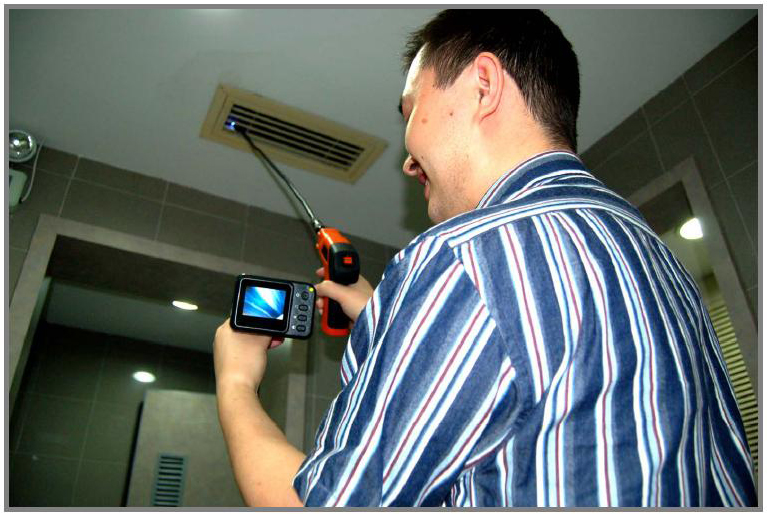

use the inspection camera to inspect A/C ducts

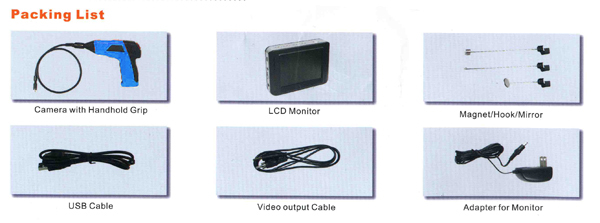

Inspection Camera Package Contents
Main Unit 17mm & 9mm Camera Heads Monitor/Recorder
Magnetic Base 2GB uSD Card Tools for 17mm camera head
Charger Video Cable USB Cable
Form Fitting Clamshell Case
