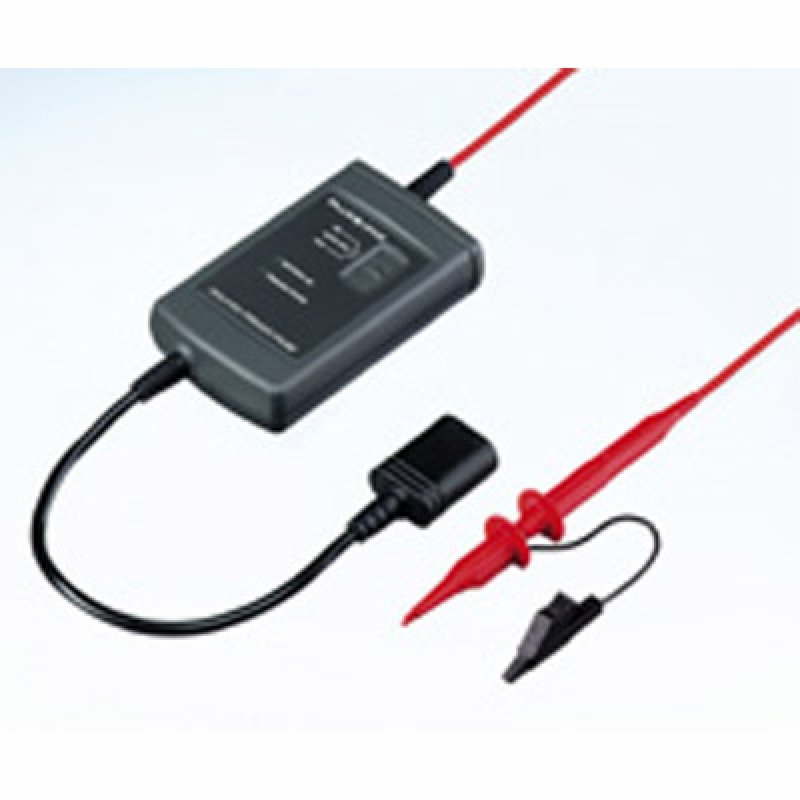

FLUKE ITP120 Opto-isometric External Trigger Probe

Designed for use with Fluke ScopeMeter 120-series. The probe connects to the optical port of the ScopeMeter 120, and features isolated external triggering, for measurements that require external triggering or triggering on floating reference signals. Probe length is 1.2m (48 inch). The probe includes a hookclip with ground lead, and a 9-Volt Alkaline battery.

Input impedance: 10MΩ in parallel with 15pF. Trigger level: TTL compatible (High = 2V, Low = 0.8V) Minimum pulsewidth: 7 µs Maximum frequency: 50 kHz Maximum signal voltage: 600 Vrms, CAT II per IEC1010-2-031 Maximum voltage to ground: 600 Vrms, CAT II per IEC1010-2-031 Battery type: Alkaline 9 volt, NEDA, IEC6LR61 Battery life: 60 hours
