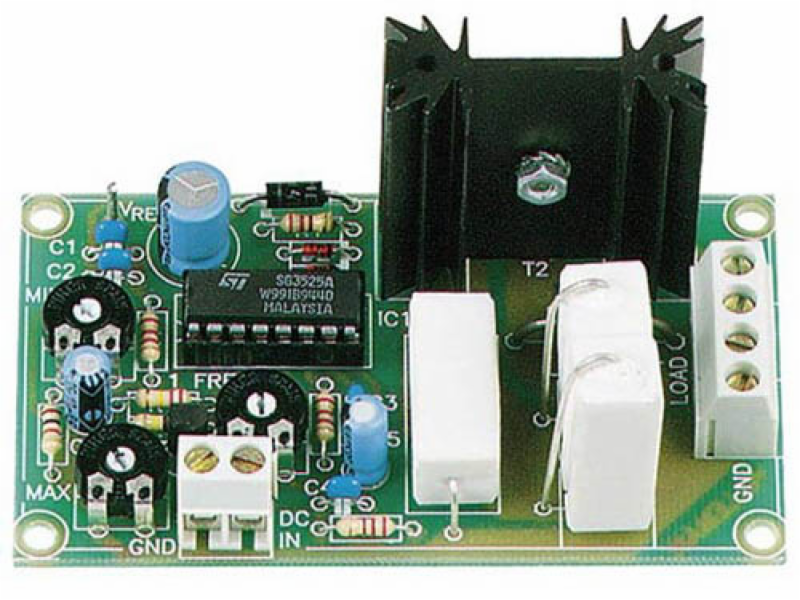

DC to Pulse Width Modulator Kit

Availability:

Available For Back Order

Item: K8004

Quantity	Price
1	$ 23.900

Quantity : 0 In Stock

DC to Pulse Width Modulator Kit

Add To Cart

Continue Shopping

This control circuit is ideal for the accurate control of DC motors lighting levels small heaters as well as other applications. The circuit converts a DC voltage into a series of pulses such that the pulse duration is directly proportional to the value of the DC voltage. The great advantage of such a circuit is that almost no power is lost in the control circuit. Can for example be used with K8000.

Specifications

Protected against overload and short circuit.
PWM range: 0 to 100%
PWM frequency: 100 Hz to 5 kHz (adjustable)
Minimum PWM offset: 0 to 20% (adjustable)
Adjustable sensitivity: 2.5 to 35 VDC
Operating voltage: 8 to 35 VDC
Minimum consumption: 35 mA
Maximum output current: 6.5 A
Input voltage: between 0 and 35 VDC
Efficiency: better than 90% at full load.
Dimensions (wxlxh): 85 x 48 x 45mm

Parts List

Label	Artnr	Qty	Description
C1...C4	C100N0M	4	100nF CERAMIC MULTILAYER CAPACITOR
C5 C6	10J0E	2	ELCO PRINT 10µF-35V
C7	100J0J	1	ELCO PRINT 100µF-50V
D1 D2	1N4148	2	SMALL SIGNAL DIODE
D3	1N4007	1	DIODE 1A-1000V
D4	6A2	1	DIODE 6A-200V
IC1	SG3525	1	DUAL PWM VOLTAGE MODE CTRL TOTEM POLE
J1...J3	SCREW02	3	SCREW CONNECTOR PRINT 2 CONT.
R1 R2	RA220E0	2	RESISTOR 1/4W 220E
R3 R4	RA2K2	2	RESISTOR 1/4W 2K2
R5	RA10K0	1	RESISTOR 1/4W 10K
R6	RA100K0	1	RESISTOR 1/4W 100K
R7	RA220K0	1	RESISTOR 1/4W 220K
R8...R10	RE0E22	3	RESISTOR 5W 0.22E
RL	RA4K7	1	RESISTOR 1/4W 4K7
RV1 RV2	K010SH	2	PIHER TRIM 10K SMALL HOR
RV3	K220SH	1	PIHER TRIM 220K SMALL HOR
T1	BC547B	1	SI-NPN 50V-0.2A
T2	BUK555'60B	1	LOGIC LEVEL MOSFET 60V
16P	16P	1	16P DIL IC SOCKET 300MIL
BT30100	BT30100	1	M3 BOLT 3X10mm
H8004B'1	H8004B'1	1	ASSEMBLY MANUAL
H8004P'1	H8004P'1	1	PARTSLIST
HS5002	HS5002	1	HEATSINK ML73/1.5
MR3	MR3	1	M3 NUT
P8004'2	P8004'2	1	PCB
PRINTP	PRINTP	1	PCB TAB
PV/1Z	PV/1Z	2	SCREW2.9X6.5
RM3K	RM3K	1	M3LOCK WASHER (DIN6798AZ)

Kit Manual
