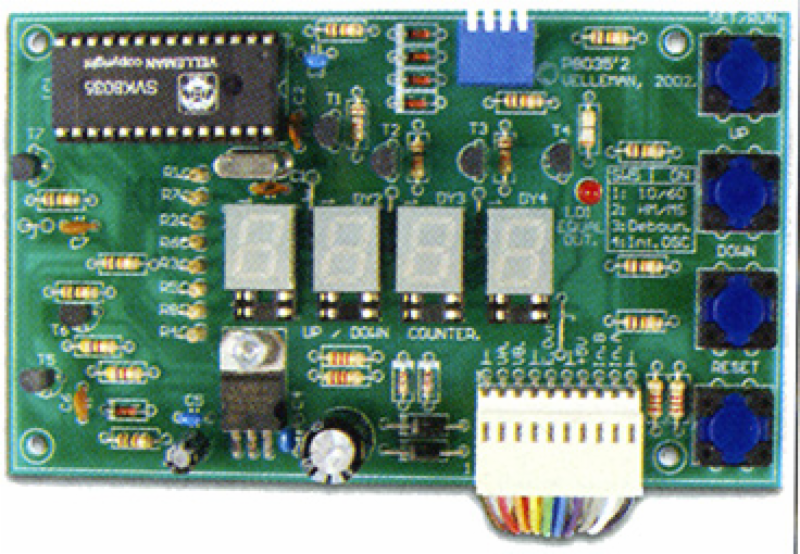

Multifunctional Up/Down Counter Kit

features:

• Counts up or down
• Count input through on-board pushbuttons or by external pulses
• Display modes: normal or time (hh:mm and mm:ss)
• Internal oscillator allows time measurement
• Programmable pre-set value with equal output
• Self-diagnostic at power up
• Comes with easy board-to-wire connector (20cm wire)

Specifications:

• Counter Input Voltage: 3..12VDC (normal dry contact also possible)
• EQUAL Output: 5VDC/max 50mA
• Max. Count: 4 digits (9999/ 23h59m/ 59m59s)
• Power Supply: 9-12VDC or transformer 2x9VAC/300mA
• Power Consumption: 150mA max.
• Dimensions: 4.9" x 3.0" x 0.7"

Kit Manual
