Kit 102 - Servo Motor Driver

Availability: Available For Back Order
Item: KIT 102
Quantity      Price
1      $ 24.950
10      $ 21.950
Quantity :     0 In Stock

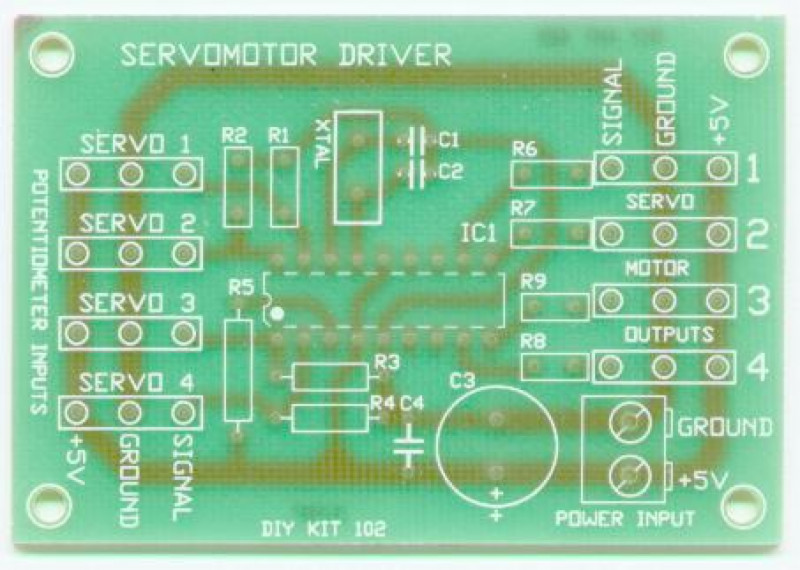

Using a PIC 16C71, a crystal, 8 resistors & 4 capacitors this kit will independently control up to 4 servo motors. We do not supply the potentiometers or servo motors. (We used a Futaba FP-S148 for out tests.) 5V DC power supply required. Full instructions provided.


Download Now!   Kit Documentation for Kit-102
(PDF: 13 KB / 2 pages)

Download Now!

Kit Schematic for Kit-102
(PDF: 18 KB / 1 page)
