3 Terminal 78xx Regulated Power Supply Kit
Availability: Available For Back Order
Item: KIT 60
Quantity      Price
1      $ 14.950
10      $ 11.950
Quantity :     0 In Stock
3 Terminal 78xx Regulated Power Supply Kit

Add To Cart

Continue Shopping

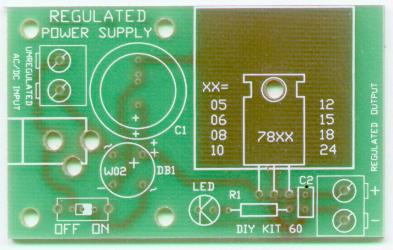

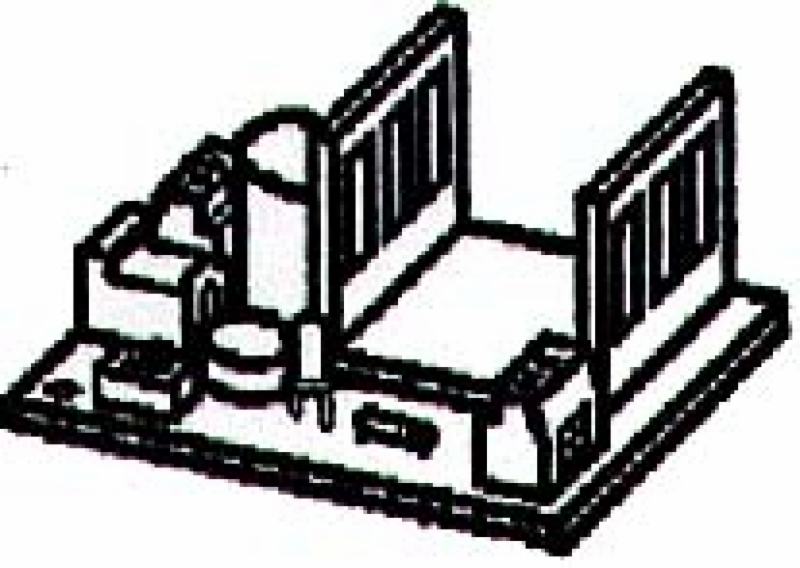

Universal PCB to take any TO-220 3 terminal positive regulated IC (user supplied). Unregulated AC or DC input via terminal block or power jack. Off/on switch. LED indicator. A quick and neat way to provide a positive, regulated voltage to a project.

Kit accepts an unregulated AC or DC input. The user supplies a standard 3 pin voltage regulator from 5 volts (using a 7805) to 24 volts (7824). The full range of possible regulators is: 7805, 7806, 7808, 7812, 7815, 7818 & 7824. Large heat-sink provided. PCB = 64mm x 40mm (2 1/2" x 1 1/2")

Note: kit requires a TO-220 Regulator (listed below) for the desired voltage.
