Stereo VU Meter Kit

Item no. KIT 89
$19.95
Bulk Qty
Price
1+
$19.950
10+
$16.950
Qty
Out of stock
Product discontinued

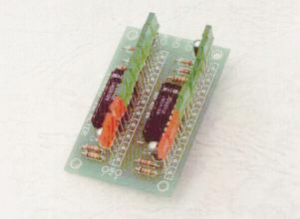

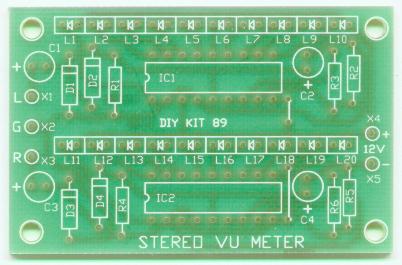

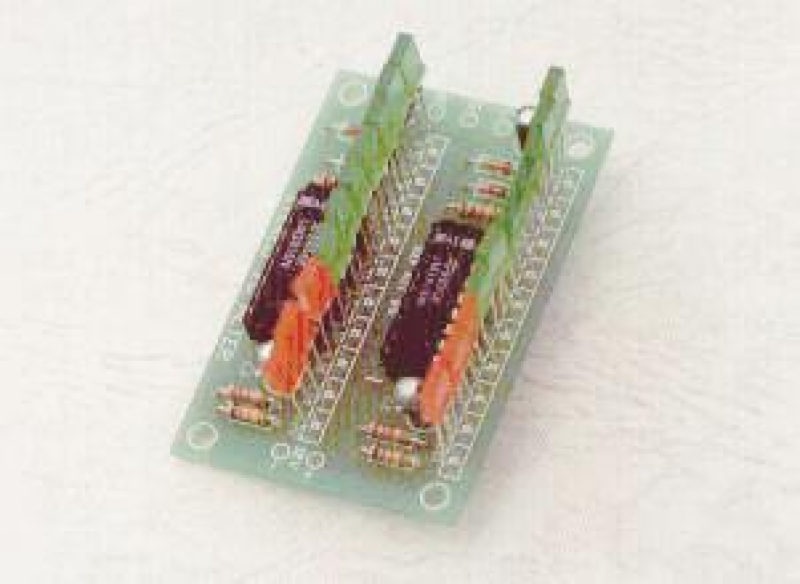

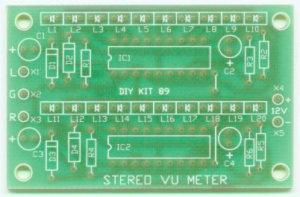

A simple, low cost stereo VU meter. Two LM3915 dot/bar display driver ICs are used to drive 2 rows of 10 LEDs (14 green, 6 red) in a moving bar display. Each row of LEDs spans a power range of 0-30 dB in ten 3-dB steps. This VU meter indicates "peak music power" when used with audio amplifiers. Ideal add-on for any of the amplifier kits. Dimensions = 65mm x 42mm

Kit Manual
