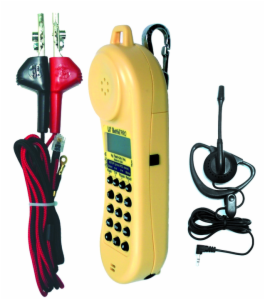

LIL' BUTTIE PRO WITH HEADSET A

Lil' Buttie Pro Telephone Test Set w/headset, cord set & AT&T clip

Item no. LB-230
$148.60


Product discontinued

Overview

Caller ID and Caller ID Call Waiting (CIDCW) are becoming popular services offered all across the U.S. and now you can test the operation of these services with your buttset. Tired of poor sounding receivers? You'll like the high quality and high fidelity of the LB230's receiver, especially when using the Amplified Monitor. It has a high impedance circuit to stay completely transparent to phone and data lines in use and its' audio amplifiers make monitoring a line in use sound the same as being off-hook. You won't want to use a passive monitor buttset after you try the LB230!.

Auto-Off in all modes so you will get maximum battery life. Built in battery level meter displays the remaining life of the alkaline battery. Line current is displayed when off-hook, line voltage is displayed while in monitor mode.

If you ever need technical assistance or service for your LB230 the phone number to contact the manufacturer is preprogrammed in memory. Just push RCL 6. You will only find these features in a Lil' Buttie PRO test set.

Click to view PDF spec sheet

  • Caller ID testing
  • LCD message display
  • Real Time line current/voltage measurements. Fast updates.
  • Data Alert- No distruption of lines in use
  • Hands Free operation with the supplied headset
  • Quick release belt clip
  • 10 foot drop ready
  • Splash/Rain safe
  • Easy to replace cordset
  • Auto-Off for maximum battery life
  • 5 Memory dial, Last Number Redial and Test-Um tech support in pre-stored memory
  • Electronic ringer
  • Amplified monitor with Pop and Click~less connections to lines in use.
  • Mute button
  • Lightweight and comfortable to hold design
  • 1 Year warranty
  • Caller ID call waiting testing
  • Flash, Pause and Tone/Pulse functions
  • Energizer 9V alkaline battery included
  • High Fidelity reciever



Features
  • Five number memory
  • Technical support number porgrammed into memory dial
  • LCD display shows
    • On-hook voltage
    • Number dialed
    • Off-hook current
    • Set-up info
    • Stored numbers
    • continuous polarity indication
    • Battery condition
    • Caller ID
    • Call waiting/Caller ID
    • Caller ID errors
  • Tone and pulse dialing
  • Microphone mute
  • Last number redial -- 19 digits
  • Electronic ringer
  • Amplified Line Monitor for volume levels comparable to "off hook" operation
  • Modular cordset attachment
  • Headset for hands-free use
  • Auto power off eliminates dead batteries


Specifications


Electrical
  • Battery current consumption (typical):
  • BELL (timed out) -- 15µA
  • TALK -- CWDID off: 2mA; CWCID on: 12mA
  • MON -- 25mA
  • Battery life: 30-50 hours typical
  • Return loss: 14db @ 600 ohms
  • Line current range: 15 to 120 mA
  • Apparent Line Resistance: 275 ohms at 20mA
  • Monitor Mode Impedance: >130 Kohms

    Pulse Dialing
  • Pulse Rate: 10 pps ±10%
  • Make/Break Ratio: 60/40% ±2%
  • Interdigit Interval: 820 mSec
  • Resistance in break: 120 Kohms

    DTMF Output
  • Tone Frequency error: ±1.5%
  • Tone Level - High Group: -6dBm ±2dB
  • Low Group: -8dBm ±2dB
  • High vs. low difference: 2dB ±1dB

    Memory Dialing
  • Type: 5 programmed + last number redial
  • Memory Capacity: 19 digits
  • Memory Retention with Battery: >2 years
  • Flash Duration: 600 mSec ±50mSec
  • Pause Duration - Tone: 3.0 sec; Pulse: 3.4 sec

    Measurement
  • Voltage: 0 to 128 VDC ±5%
  • Current: 10 to 140 mA ±5%

    Environmental
  • Temperature - Operating: 0 to 50°C
  • Storage: -20 to 60°C

    Physical
  • Length (without lanyard): 7.25 in (18.4 cm)
  • Width: 2.50 in (6.4 cm)
  • Height: 1.68 in (4.3 cm)
  • Weight (with coard set): <10 ozs. (284 gms)

    Specifications Subject To Change Limited to stock on hand - No BackOrders
