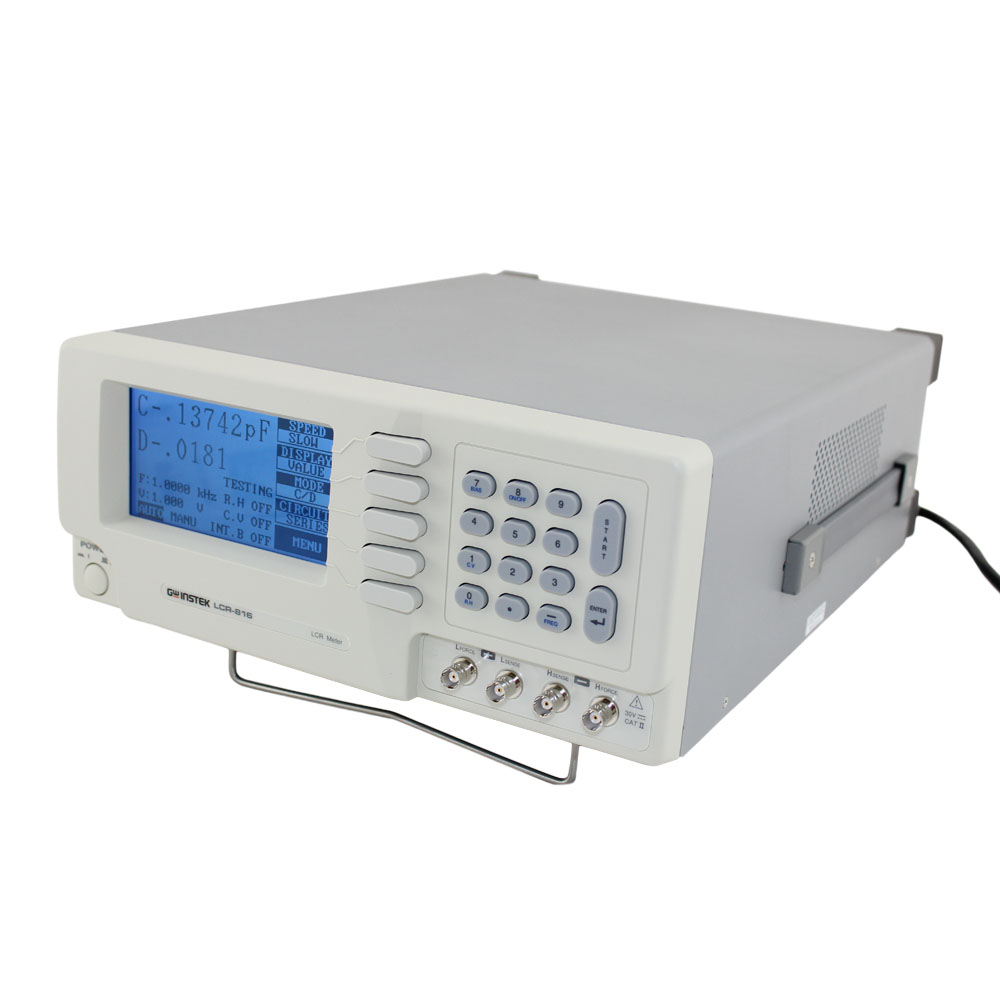

Instek High Precision 100Hz-2kHz LCR Meter

Individual Product Details:

FEATURES:

• 100Hz to 2kHz, Continuously Variable Frequencies
• 0.1% Measurement Accuracy
• 100 Sets Memory for Save/Recall of Setup State
• R/Q, C/D, C/R, L/Q Test Modes
• Absolute Value, Delta Value, and Delta% Measurement Display
• 240 x 128 dot Matrix LCD Display
• Test Condition and Test Result shown on the screen Simultaneously

• Specifications:

• Test Frequency: 100Hz ~ 2kHz (245 steps)
• Basic Accuracy: 0.1%
• Test Speed: 68mS
• Test Signal Levels: 0.1V ~ 1.275V (5mV/step)
• DC BIAS External: 2V
• DC BIAS Internal: 0 to 30V
• Display Range Impedance/Resistance: R 0.00001Ohm -99999kOhm
• Capacitance: C 0.00001pF ~ 99999µF
• Inductance: L 0.00001mH ~ 99999H
• Quality Factor: Q 0.0001 ~ 9999
• Dissipation Factor:D 0.0001 ~ 9999
• Test Mode: R/Q, C/D, C/R, L/Q
• Equivalent Circuit: Parallel or serial selectable
• Memory: 100 memory blocks total
• Average: 1 to 255 times
• Test Speed: SLOW, MEDIUM and FAST
• Display Mode: Value, Delta, Delta%
• Display: 240 x 128 dot matrix C.C.F.L back light LCD
• Power Source: 100V ~ 240V, 50/60Hz
• Dimensions: 13.2 x 5.96 x 17.48"
