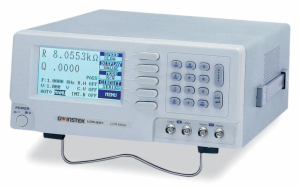

Instek High Precision 12Hz-200kHz LCR Meter

Item#: LCR-821

FEATURES:

Test Frequency: 12Hz to 200kHz, Continuously Variable Frequencies
0.1% High Measurement Accuracy
100 Sets Memory for Save/Recall of Setup State
R/Q, C/D, C/R, L/Q, Z/8, L/R Test Modes
Absolute Value, Delta Value, and Delta% Measurement Display
240 x 128 dot Matrix LCD Display
Test Condition and Test Result shown on the Screen Simultaneously
RS-232C Interface (Including LCR-Viewer Software) (Standard)
Specifications:
Test Frequency: 12Hz ~ 200kHz (504 steps)
Basic Accuracy: 0.1%
Test Signal Levels: 5mV ~ 1.275V (5mV/step)
DC BIAS External: 2V
DC BIAS Internal: 0 to 35V
Display Range Impedance/Resistance: R 0.00001Ohm -99999kOhm
Capacitance: C 0.00001pF ~ 99999µF
Inductance: L 0.00001mH ~ 99999H
Quality Factor: Q 0.0001 ~ 9999
Dissipation Factor:D 0.0001 ~ 9999
Impedance: |Z| 0.00001Ohm ~ 99999kOhm
Phase Angle (Degree): 8 -180.00° ~ 180.00°
Test Mode: R/Q, C/D, C/R, L/Q, Z/8, L/R
Equivalent Circuit: Parallel or serial selectable
Memory: 100 memory blocks total
Average: 1 to 255 times
Test Speed: SLOW, MEDIUM and FAST
Display Mode: Value, Delta, Delta%
Display: 240 x 128 dot matrix C.C.F.L back light LCD
Interface: RS-232C
Power Source: 100V ~ 240V, 50/60Hz
Dimensions: 13.2 x 5.96 x 17.48"
