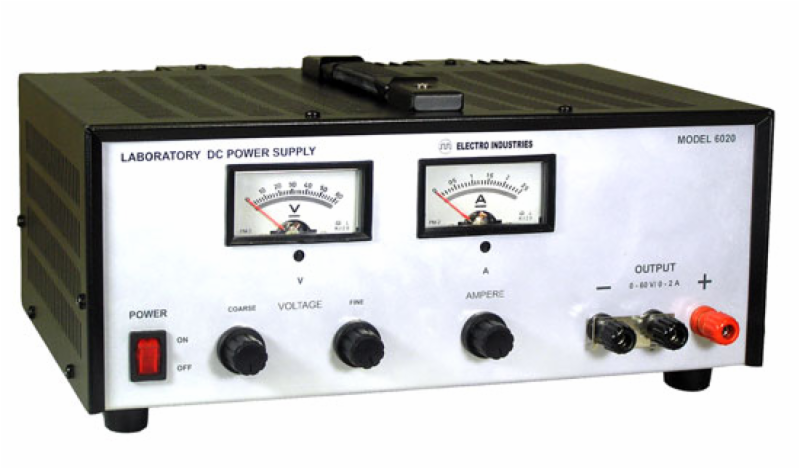

Multi-Purpose Laboratory Bench Power Supply

The Model 6020 is designed to be a convenient source of benchtop power with special emphasis on reliability and ease of operation. A fully dissipative regulator circuit allows indefinite short-circuit operation with no damage. Series or parallel capability, excellent stability and separate meters for viewing output voltage and current enhance versatility. The 6020 has the features and quality that make-it ideally suited for laboratory, educational, production testing and servicing applications.

Features of the 6020 Bench Power Supply:

• Continuously Adjustable 0-60 Volts DC at 0-2 Amps
• Constant Voltage/Constant Current Operation
• Fully Adjustable Current Limiting
• Floating Output--Use as a Negative or Positive Source
• Very Low Ripple & Noise
• Protected Against Short-Circuit and Polarity Reversal
• Coarse and Fine Voltage Controls
• Option: 10-Turn Current Potentiometer

6020 Bench Power Supply Specifications:

Output Voltage: 0 to 60 volts DC.
Output Current: 0 to 2 amperes.
Voltage Regulation - Load/Line: 0.05% from zero to full load/0.02% from 105 to 125VAC.
Current Regulation - Load/Line: 0.25% from short-circuit to 60V/0.1% from 105 to 125VAC.
Ripple & Noise: 500uV RMS.
Overload Protection: Load and power supply are protected by an adjustable electronic current limiting circuit. Current limiting is adjustable from less than 1% to 105% of output current. AC input is fuse-protected.
Polarity: Positive or negative output terminal may be grounded or the supply may be floated up to 300VDC between any output terminal and chassis ground.
Temperature - Operating/Storage: 0° to +40°C/-20° to +75°C.
Power Requirements: 115/230 ±10/20VAC, 50/60Hz, 240W.
Size (HWD): 5-1/2x12-1/8x10-1/2in. (140x308x267mm).
Weight: 16lbs (7.2kg).
