PCI Express 8-CH Relay Output & 8-CH Isolated DI Card

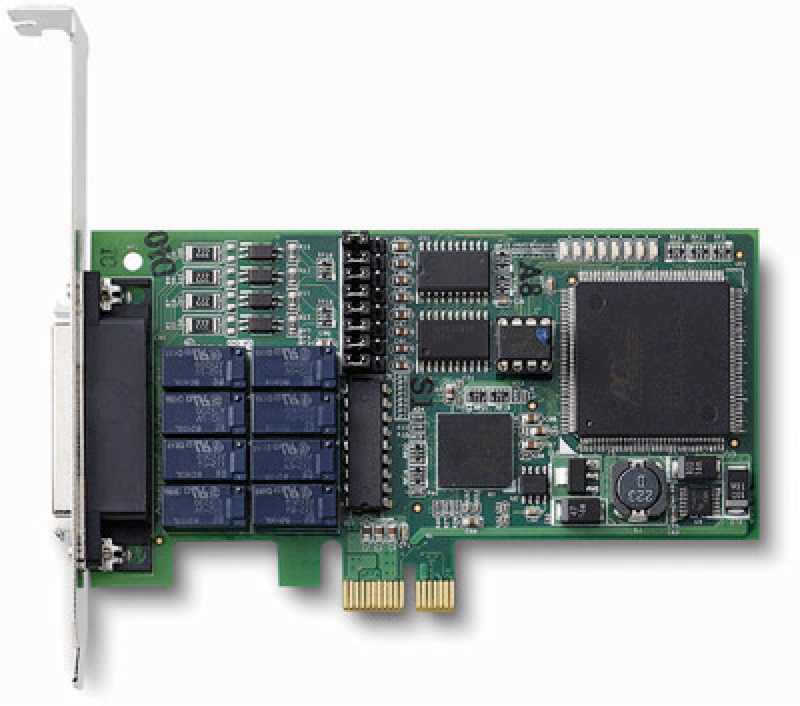

LPCIe-7250
8-CH Relay Output & 8-CH Isolated DI Low-Profile PCI Express Card

Features

• x1 lane PCI Express Interface
• 8-CH SPDT
• 8-CH isolated digital inputs
• Non-latching relays
• On-board LED indicators for relay status
• On-board relay driving circuits
• Relay output status read back

Introduction

The LPCIe-7250 provides 8-CH SPDT (Form C) relay outputs and 8-CH isolated digital inputs. The status of each relay output is represented by an onboard LED. When the relay is in SET condition, its corresponding LED will turn ON, and on the contrary, it is OFF. All digital input channels are non-polarity, optically isolated, and may be set to use RC filter or not. The devices are suitable for collecting digital inputs in noisy environments.
