Dual Stepper Motor System with 50 in/oz Torque

The MD-2a is our smallest system and is capable of driving all of our linear and rotary positioning tables with moderate payloads and speed.

MD-2 System Features

• Operates with a standard IBM-style PC

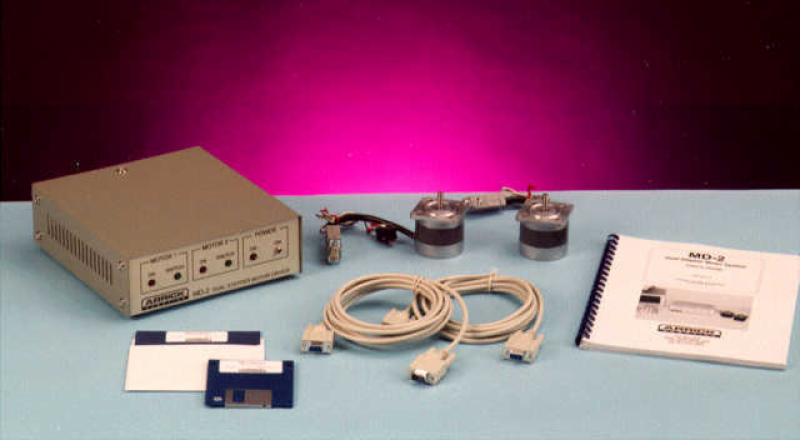

• Includes motors, cables, driver, software, documentation
• Easy to install and program
• Interactive Motion control software included
• Up to 6 motors on a single PC
• Operates with data acquisition boards
• Subroutine libraries in C, Basic, VB, Pascal source
• Powerful multi-axis coordinated motion
• General purpose Digital I/O signals provided
• 2 sizes to choose from
• No motion control experience needed
• Cost effective

Size: #23 motors, 2.3" dia, 2.3" long, 1/4" shaft
Resolution: .9 degree steps, (400 per revolution)
Speed: 10,000 steps per second maximum
Torque: 50 in/oz holding, 15-35 in/oz running
Shipping weight: 13 lbs.

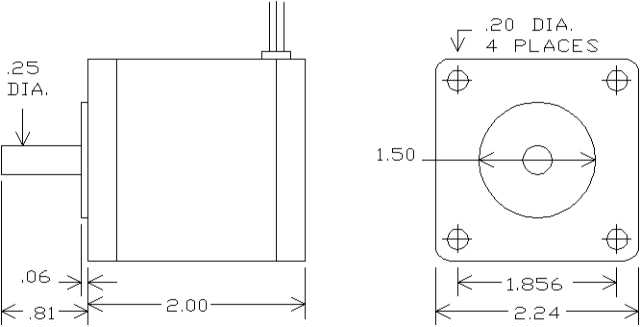

MD-2A Motor
