Dual Stepper Motor System with 150 in/oz Torque
Item#: MD-2B
Individual Product Details:
Having 3 times the torque of the MD-2a system, the MD-2b can be used with our X and XY positioning tables to move larger payloads faster.
Note: Special Order Item, availability is usually 3-4 days.
MD-2 System FeaturesC
- Operates with a standard IBM-style PC

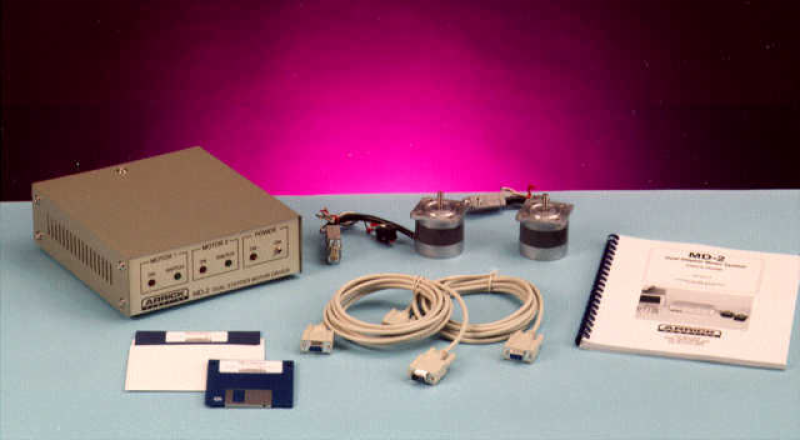

- Includes motors, cables, driver, software, documentation
- Easy to install and program
- Interactive Motion control software included
- Up to 6 motors on a single PC
- Operates with data acquisition boards
- Subroutine libraries in C, Basic, VB, Pascal source
- Powerful multi-axis coordinated motion
- General purpose Digital I/O signals provided
- 2 sizes to choose from
- No motion control experience needed
- Cost effective

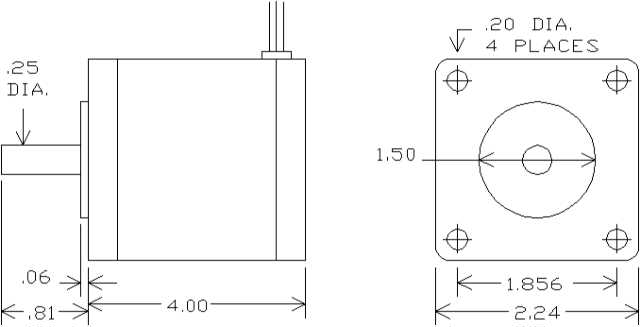

Size: #23 motors, 2.3" dia, 4" long, 1/4" shaft
Resolution: .9 degree steps, (400 per revolution)
Speed: 10,000 steps per second maximum
Torque: 150 in/oz holding, 50-100 in/oz running
Shipping weight: 20 lbs.
