True RMS Graphical Digital Multimeter & 5MHz DSO with 20MHz Monitoring

The MS-1280 is a True RMS Graphical Digital Multimeter& 5MHz Digital Storage Oscilloscope with 20MHz Monitoring

MS-1280 Oscilloscope Features:

• DC to 5MHz Bandwidth
• 20MS/sampling rate
• Wave monitoring up to 20MHz by PLL
• Single input channel
• Graphic Display

  • 8 horizontal 4 vertical division
  • Text display : Vpp, MIN/MAX V, Freq.
• Auto Setup function
• Trigger

  • Auto and Internal mode
  • Slope and 5 levels selectable
• Cursor Measurement

MS-1280 Digital Multimeter Features:

• Auto Ranging 3 3/4 digit (3999 counts)
• Triple display for related reading
• True RMS
• Additional 43 segment Bargraph display
• Data-Hold and Range-Hold
• Auto/Min/Max-Hold and Relative Offset
• OL and Low Battery indication

Specifications:

• DC Voltage: 400mV ±0.5% + 2dgts / 4V to 600V ±0.8% + 2dgts
• AC Voltage: 4V to 40V ±2.0% + 5dgts(40Hz~5KHz) / 400V to 600V ±2.5% + 5dgts (40Hz~2KHz)
• DC Current: 400µA to 4mA ±0.8% + 2dgts / 40mA to 400mA ±1.2% + 2dgts
• AC Current: 400µA to 400mA ±2.0% + 5dgts (40Hz~5KHz)
• Resistance: 400ohms to 400Kohms ±0.8% + 2dgts / 4Mohms to 40Mohms ±1.5% + 5dgts
• Capacitance: 4nF to 400nF ±2.0% + 5dgts / 4µF to 40µF ±3.0% + 5dgts / 200µF ±5.0% + 5dgts
• Frequency: 4KHz to 4MHz ±0.1% + 1dgts
• Temperature: -40°C to 200°C ±3.0% + 5dgts / 200°C to 1200°C ±3.0% + 2dgts
• Continuity: Buzzer sounds of Resistance less than 80ohms
• Diode: Test current max. 1.5mA at 1Kohm (Forward voltage max. 2V)
• Signal_out: 1Hz~10KHz (13 steps)
• LCD_Display: 128 X 128 pixel graphic STN LCD
• Safety: CE Marked and Designed to meet IEC 1010-1

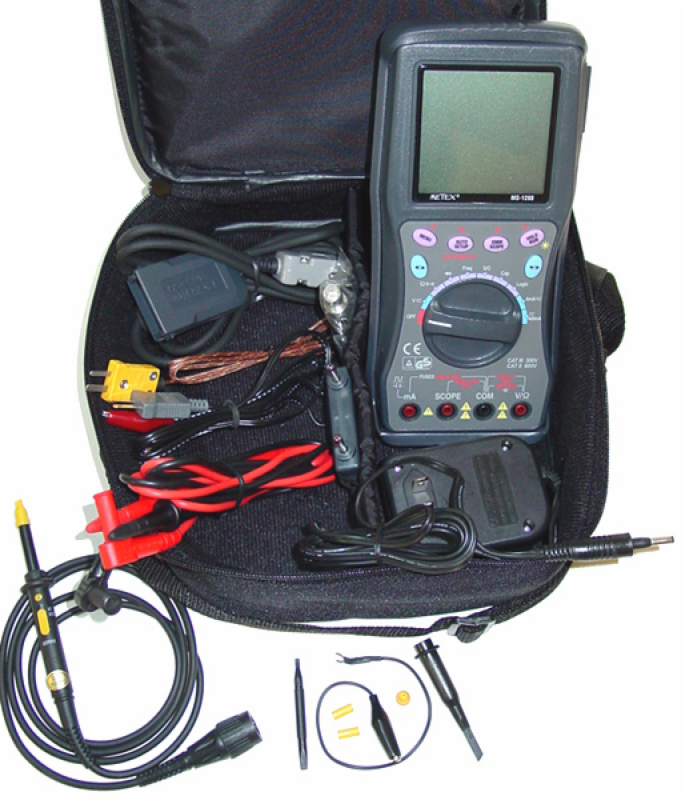

Included Accessories:

• Rugged Holster
• AC Power Adapter
• DMM Test Leads
• Soft Case
• RS-232C Cable and Software
• Scope Probe
• Temperature Probe
• C-Socket
• BNC Connector
• Signal Out Probe
• Manual
