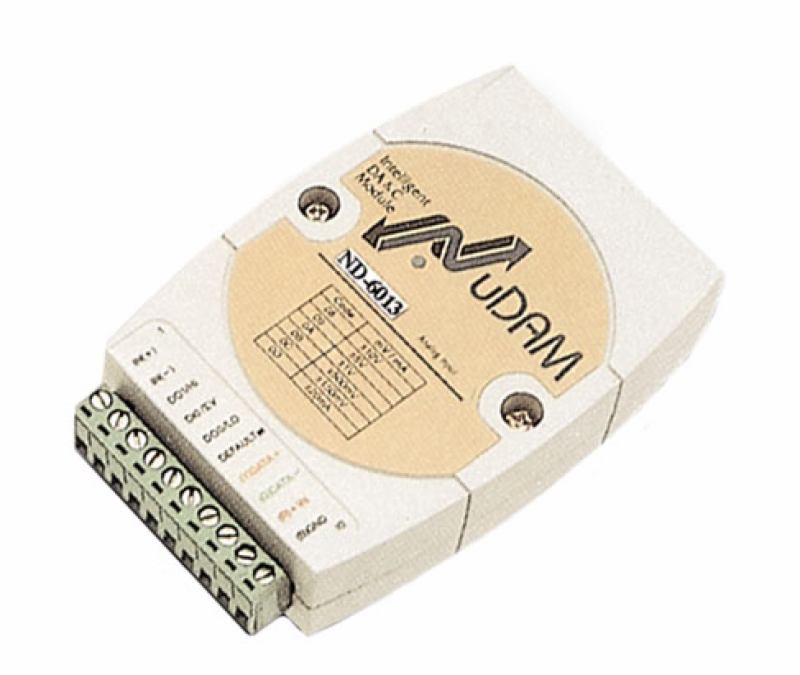

3Ch RTD Input Module

Availability: 2 In Stock
Item: ND-6013
Quantity      Price
1      $ 209.000
Quantity :

  • Analog InputInput Type: Pt-100, Ni-100, or Ni-120 RTD
  • Isolation Voltage: 5000 Vrms
  • Sampling Rate: 10 samples/sec
  • Input Wiring: 2, 3, or 4 wires
  • Accuracy: ± 0.05%
  • Zero Drift: ± 0.3m V/° C
  • Span Drift: ± 25 ppm/° C
  • CMR@50/60 Hz: 150db
  • NMR@50/60 Hz: 100db
  • Power
    • Requirement: unregulated +10V to +30VDC
    • Power Consumption: 0.8 W typical

Supported RTDs

RTD Type

Temperature Range

Pt

-100° C to +100° C = 0.00385

Pt

0° C to +100° C = 0.00385

Pt

0° C to +200° C = 0.00385

Pt

0° C to +600° C = 0.00385

Pt

-100° C to +100° C = 0.003916

Pt

0° C to +100° C = 0.003916

Pt

0° C to +200° C = 0.003916

Pt

0° C to +600° C = 0.003916

Ni-100

0° C to +100° C

Ni-120

0° C to +100° C



Manual ND-6013
NUDAM Admin Util Windows 95/NT
Windows 3.1
W3.1/W95/W98/WNT Drivers NDS-DLL6
Manual for DLL6
DDE Server NDS-DDE



View Product Data Sheet
