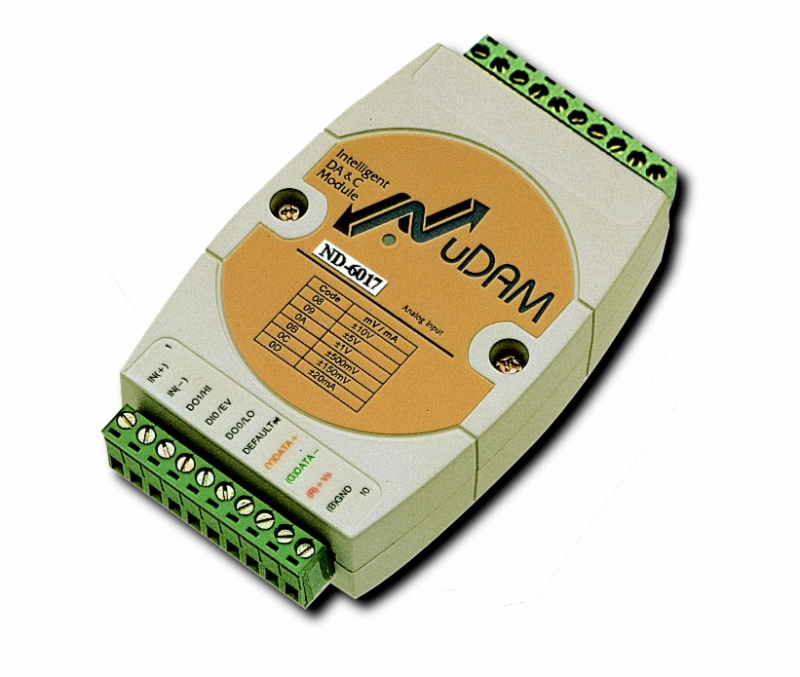

8 Channel Analog Input Module

Analog Input

• Channels: 6 Differential & 2 Singled-ended

• Input Type: mV, V, and mA

• Input Range: ±150mV, ±500mV, ±1V, ±5V, ±10V

• Current Range: ±20mA

• Isolated Voltage: 5000Vrms

• Sampling Rate: 10 samples/sec

• Accuracy: ±0.1% or better

• Zero Drift: ±6μV°C

• Span Drift: ±25 ppm/°C

• CMR: 92dB

Power

• Requirement: unregulated +10V to +30V DC

• Power Consumption: 1.2W typical
