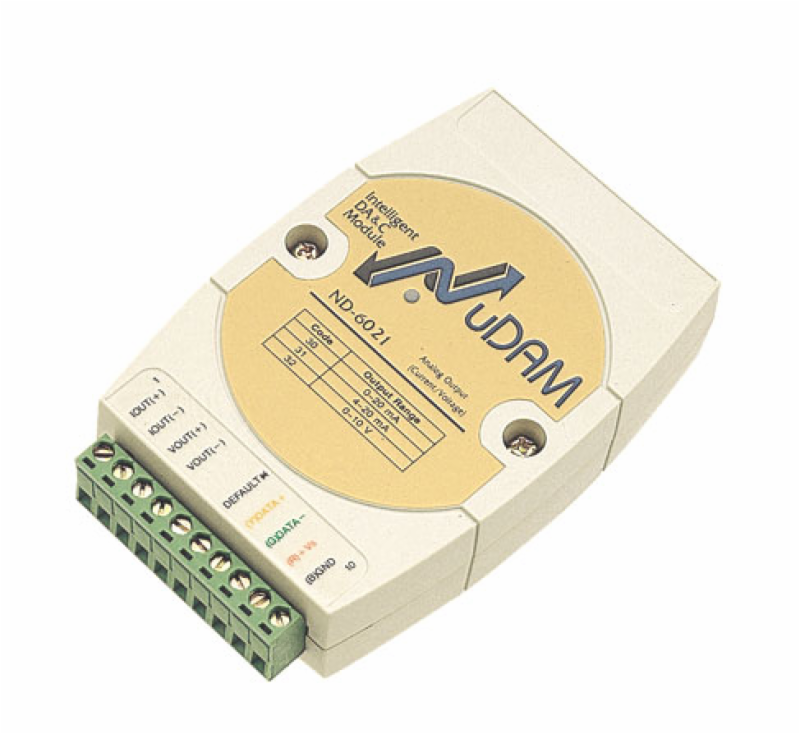

Analog Output Module

• Voltage Output: 0 ~ 10V

• Current Output: 0 ~ 20mA, 4 ~ 20mA

• Output Isolation: 5000 Vrms

• Resolution: 12-bit output resolution

• Accuracy:

  • ±0.1% of FSR (current)

  • ±0.2% of FSR (voltage)

• Readback Accuracy: ±1% of FSR

• Zero Drift:

  • ± 0.2μA/°C (current)

  • ± 30μV/°C (voltage)

• Span Temperature Coefficient: ±25ppm/°C

• Programmable Output Slope:

  • 0.125 to 128 mA/sec

  • 0.0625 to 64V/ sec

• Current Load Resister: 0 to 500 Ω

Power

• Requirement: unregulated +10V to +30V DC

• Power Consumption: 1.6W typical
