1.0 kg-cm 4 Wire NEMA 11 Stepper Motor
Availability: 28 In Stock
Item: 28BYG501
Quantity      Price
1      $ 16.950
10      $ 14.950
Quantity :
1.0 kg-cm 4 Wire NEMA 11 Stepper Motor

Add To Cart

Continue Shopping

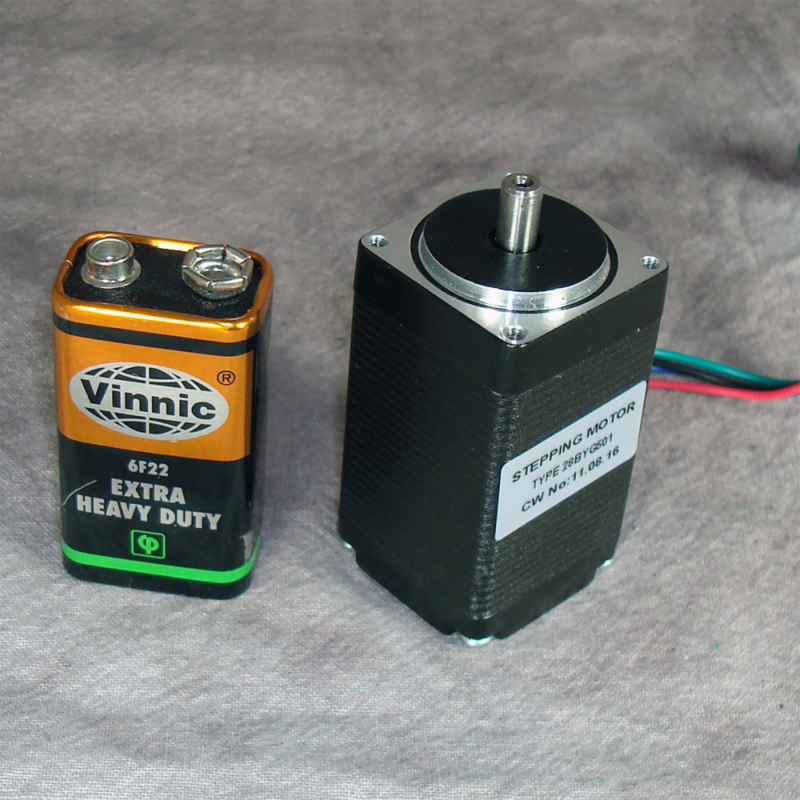

*Note: 9V battery shown for size reference only.


28BYGH501
NEMA 11 Stepper Motor Specifications
Step angle 1.8°
Current (A) 0.8
Resistance (Ohms) 4.9
Inductance (mH) 3.3
L0 Dimension (mm) 51
L1 Dimension (mm) 10
Holding Torque(N.cm) 10.0
Control Wires 4
Insulation Resistant 500V  DC  100 MOhm Min
Insulation Strength 50Hz  1Minute  500V Min
Ambient Temperature -20°C~+50°C
Temperature Rise 80°C Max.
Radial Play 0.02mm Max.
End Play 0.1-0.3mm

Wiring Diagram

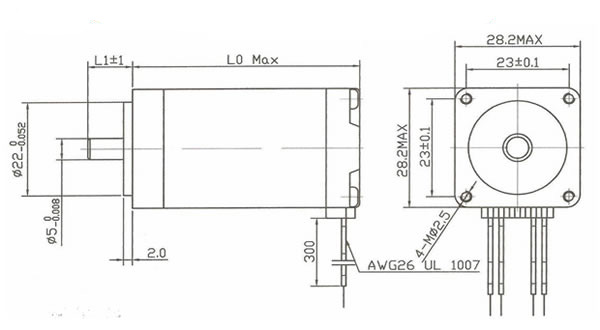

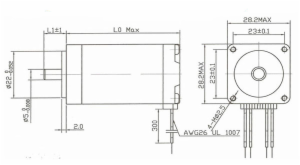

Mechanical Dimensions (Click on image to enlarge)
