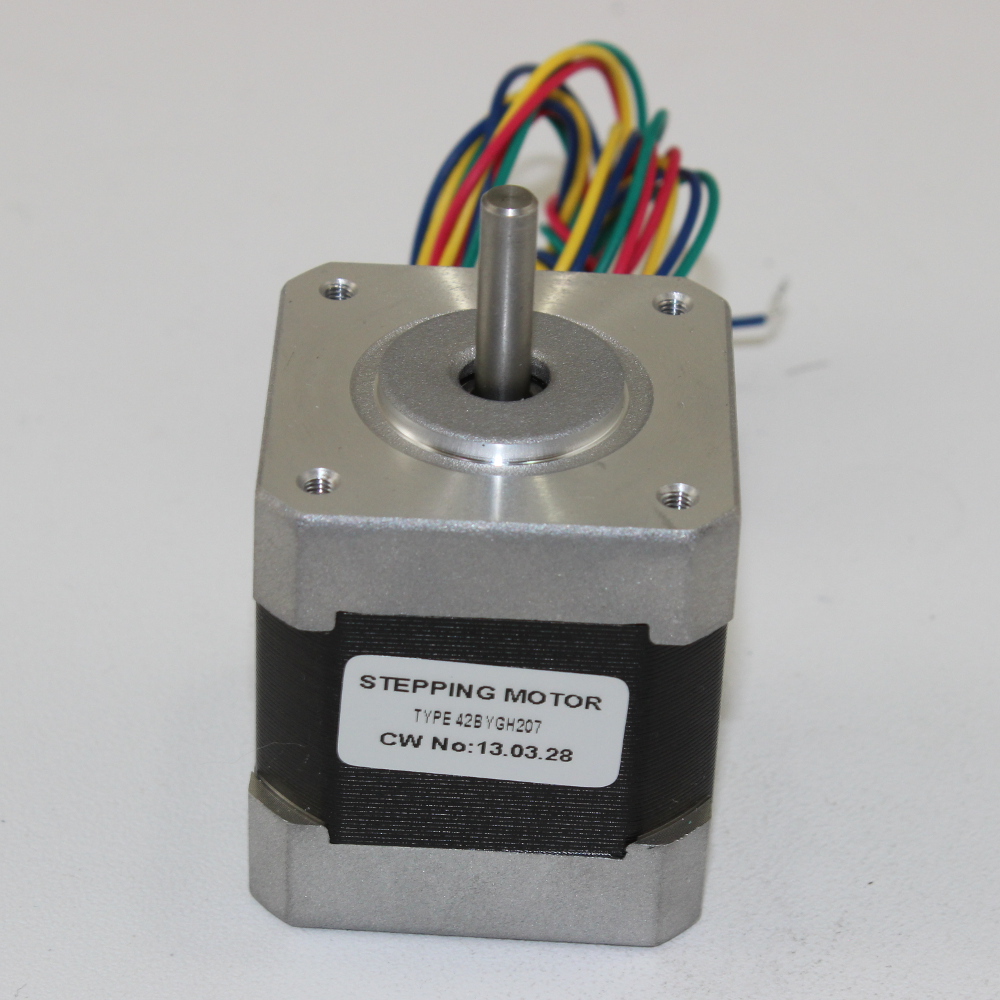

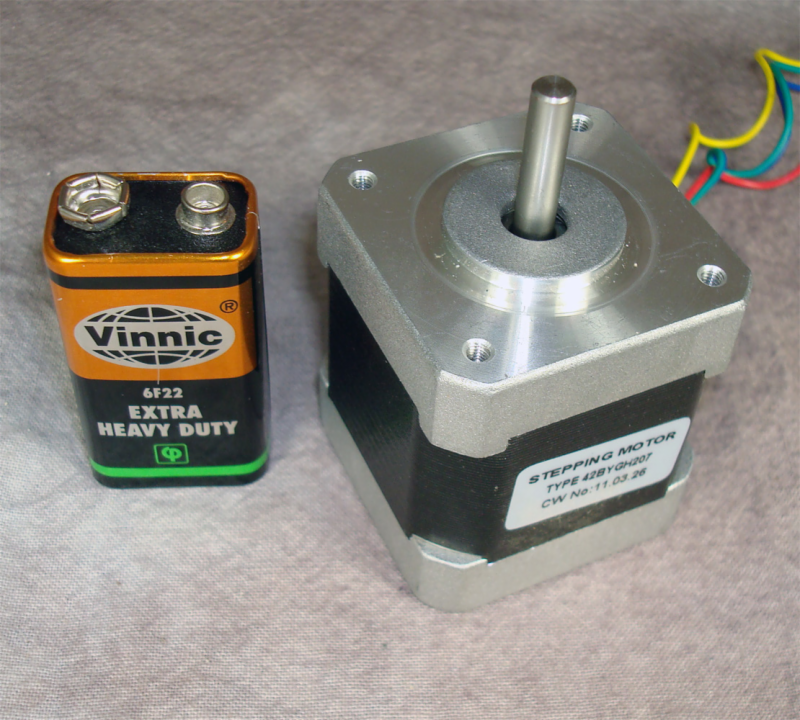

3 kg-cm 4 Wire NEMA 17 Stepper Motor

Item#: 42BYGH207
Availability: 16 In Stock
Quantity Price
1 $ 12.950
10 $ 10.950


Quantity
Add to cart

Individual Product Details:



Common Specifications Technical Specifications
Step Angle 1.8o +/- 5% Voltage 9.0V
No of phase 2 current/phase 0.4A
holding torque 200g.cm inductance/phase 20mH
Insulation Glass B resistance/phase 22 Ohm
Insulation restiance 100Mohm(500V DC) Max Static torque 3.0kg.cm



Compatible with these Controllers:

  • XCW220



Technical Specs

Learn more about stepper motors

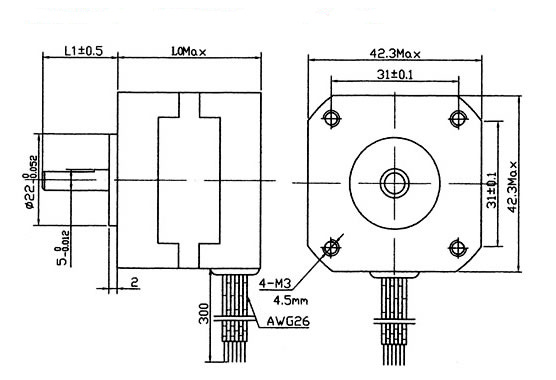

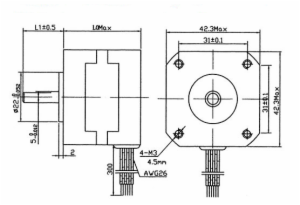

Mechanical Dimensions
