3.3 kg-cm 6 Wire NEMA 17 Stepper Motor
Availability: 37 In Stock
Item: 42BYGH3906
Quantity      Price
1      $ 12.490
10      $ 10.490
Quantity :
3.3 kg-cm 6 Wire NEMA 17 Stepper Motor

Add To Cart

Continue Shopping

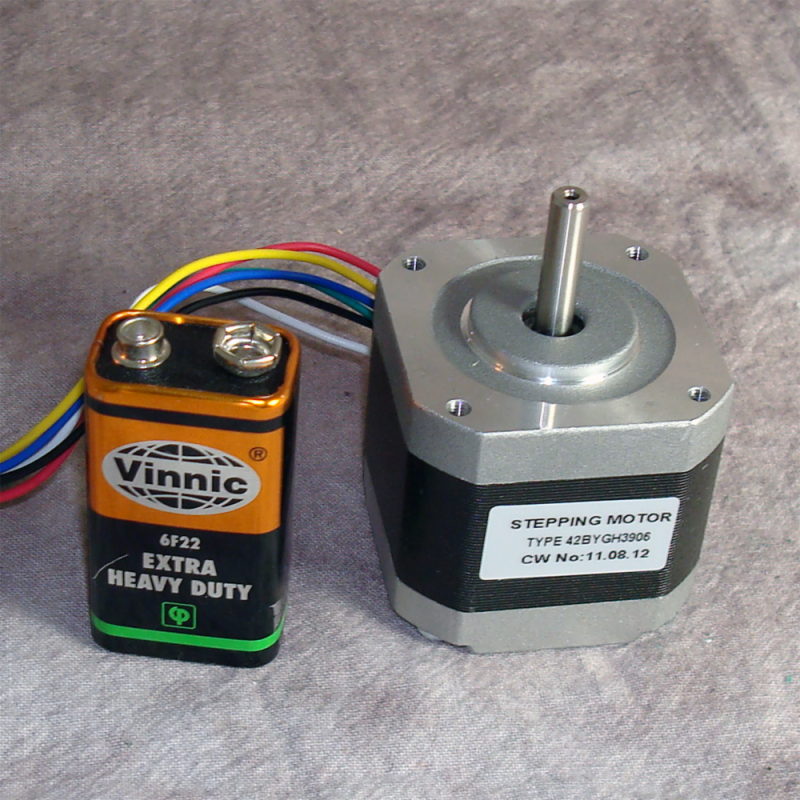

*Note: 9V battery shown for size reference only.


42BYGH3906
NEMA 17 Stepper Motor Specifications
Step angle 1.8°
Current (A) 0.65
Resistance (Ohms) 11.5
Inductance (mH) 12
L0 Dimension (mm) 40
L1 Dimension (mm) 20
Holding Torque(N.cm) 3.2
Control Wires 6
Insulation Resistant 500V  DC  100 MOhm Min
Insulation Strength 50Hz  1Minute  500V Min
Ambient Temperature -20°C~+50°C
Temperature Rise 80°C Max.
Radial Play 0.02mm Max.
End Play 0.1-0.3mm

Wiring Diagram

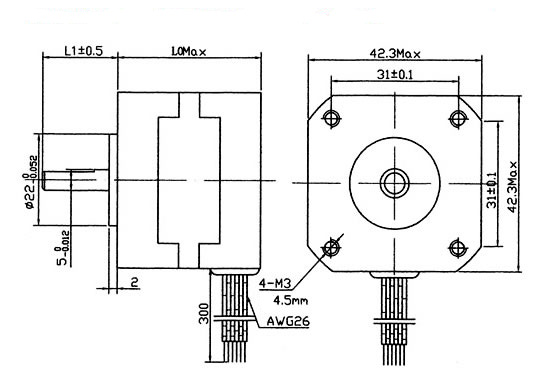

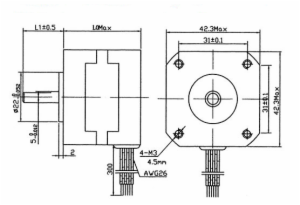

Mechanical Dimensions (Click on image to enlarge)
