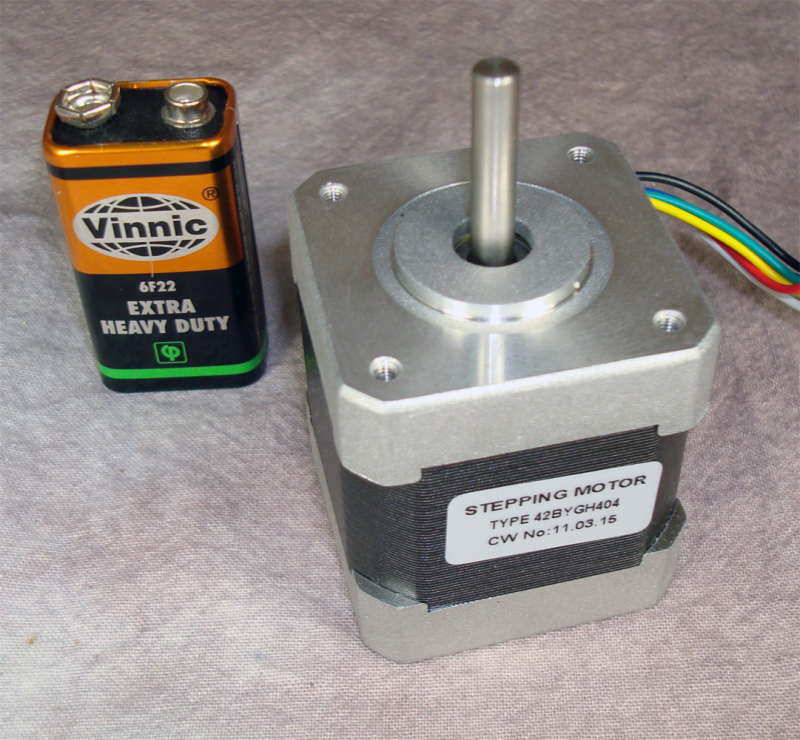

3.4 kg-cm 6 Wire NEMA 17 Stepper Motor

Item no. 42BYGH404

3.4 kg-cm 6 Wire NEMA 17 Stepper Motor

Item no. 42BYGH404
$12.95
Bulk Qty
Price
1+
$12.950
10+
$11.950
Qty
40 In Stock

3.4 kg-cm 6 Wire NEMA 17 Stepper Motor

Specifications:

  • Step angle: 1.8°
  • Voltage (V): 12
  • Current (A): 0.31
  • Resistance (Ohms): 30
  • Inductance (mH): 25
  • L0 Dimension (mm): 48
  • L1 Dimension (mm): 24
  • Holding Torque (kg.cm): 3.4
  • Control Wires: 6
  • Insulation Resistant: 500V DC 100 MOhm Min
  • Insulation Strength: 50Hz 1Minute 500V Min
  • Ambient Temperature: -20°C~+50°C
  • Temperature Rise: 80°C Max.
  • Radial Play: 0.02mm Max.
  • End Play: 0.1-0.3mm

View Product Specifications

Learn more about stepper motors

Wiring Diagram:

Mechanical Dimensions:
