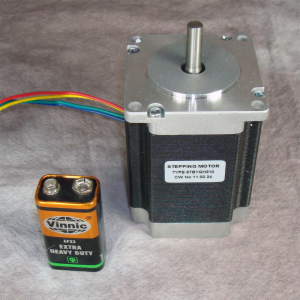

24.0 kg-cm 4 Wire NEMA 23 Stepping Motor

Item no. 57BYGH310
$23.89
Bulk Qty
Price
1+
$23.890
10+
$20.890
Qty
117 In Stock

24.0 kg-cm 4 Wire NEMA 23 Stepping Motor

Specifications:

  • Step angle: 1.8°
  • Voltage (V): 8.6
  • Current (A): 2.0
  • Resistance (Ohms): 4.3
  • Inductance (mH): 16.2
  • L0 Dimension (mm): 76
  • L1 Dimension (mm): 21
  • Holding Torque (kg.cm): 24.0
  • Control Wires: 4
  • Insulation Resistant: 500V DC 100 MOhm Min
  • Insulation Strength: 50Hz 1Minute 500V Min
  • Ambient Temperature: -20°C~+50°C
  • Temperature Rise: 80°C Max.
  • Radial Play: 0.02mm Max.
  • End Play: 0.1-0.3mm

Wiring Diagram:

Learn more about stepper motors

Mechanical Dimensions:
