21.0 kg-cm 6 Wire NEMA 23 Stepping Motor
Availability: 57 In Stock
Item: 57BYGH405A
Quantity      Price
1      $ 25.500
10      $ 22.500
Quantity :
21.0 kg-cm 6 Wire NEMA 23 Stepping Motor

Add To Cart

Continue Shopping

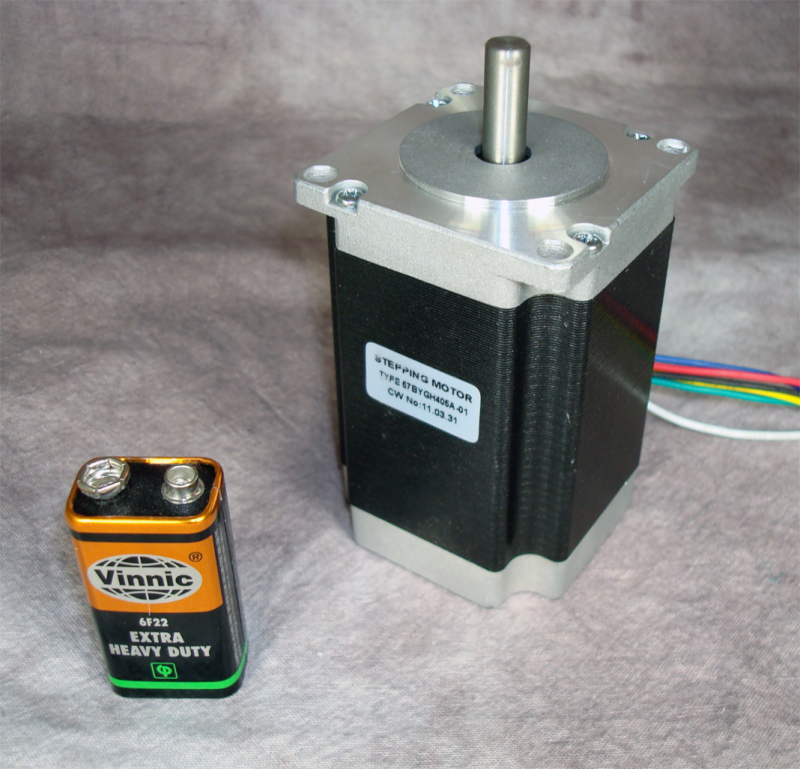

*Note: 9V battery shown for size reference only.

General Specifications:

  • Motor Frame size: NEMA 23
  • Holding Torque: 20 kg.cm / 277 oz.in
  • Step Angle: 1.8 Deg ± 5°
  • Insulation Resistant: 500VDC 100M Min.
  • Insulation Strength: 50Hz 1Minute 500V Min.
  • Ambient Temperature: -20 ~ 50°
  • Operating Temperature: 110°C Max.
  • Radial Play: 0.02mm Max.
  • End Play: 0.1-0.3mm

Compatible with these Controllers:

  • CW230
  • CW250
  • CW860

View Product Specifications

Learn more about stepper motors
