48 kg-cm 8 Wire NEMA 34 Step Motor
Availability: Available For Back Order
Item: 85BYGH450B-03
Quantity      Price
1      $ 54.500
10      $ 49.500
Quantity :     0 In Stock
48 kg-cm 8 Wire NEMA 34 Step Motor

Add To Cart

Continue Shopping

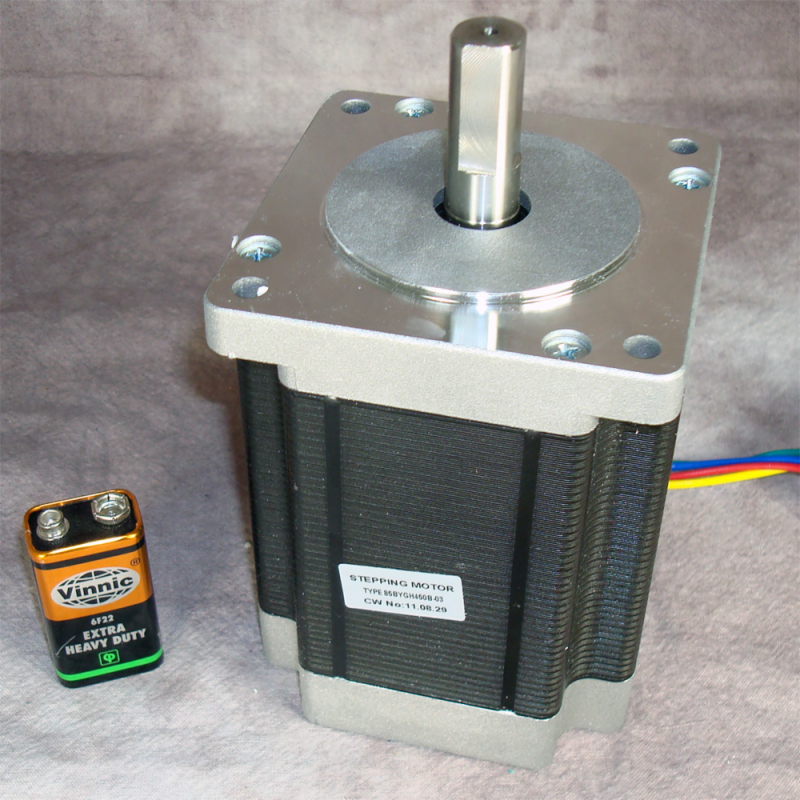

*Note: 9V battery shown for size reference only.

Motor Frame size: NEMA 34
Holding Torque: 48 kg.cm / 665 oz.in

General Specifications:

  • Step Angle: 1.8 Deg ± 5°
  • Insulation Resistant: 500VDC 100M Min.
  • Insulation Strength: 50Hz 1Minute 500V Min.
  • Ambient Temperature: -20 ~ 50°
  • Operating Temperature: 110°C Max.
  • Radial Play: 0.02mm Max.
  • End Play: 0.1-0.3mm
  • 2A @ Max Torque
  • 12mh Inductance
  • 3.2Ohm Winding Resistance

Compatible with these Controllers:

  • CW230
  • CW250
  • CW860

Learn more about stepper motors
