11.8 kg-cm 6 Wire NEMA 34 Stepper Motor
Availability: 12 In Stock
Item: 85BYGH450A-04
Quantity      Price
1      $ 52.950
10      $ 48.950
Quantity :
11.8 kg-cm 6 Wire NEMA 34 Stepper Motor

Add To Cart

Continue Shopping

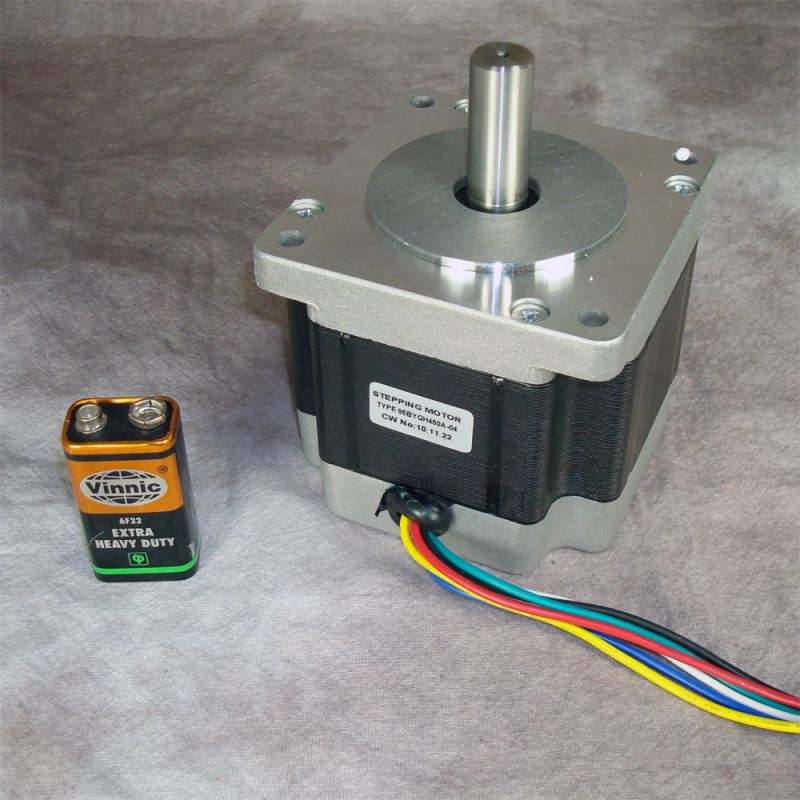

*Note: 9V battery shown for size reference only.

85BYGH450A-04
NEMA 23 Stepper Motor Specifications

Step angle

 1.8°
Current (A) 3.0
Resistance (Ohms) 1.0
Inductance (mH) 4.05
L0 Dimension (mm) 75
L1 Dimension (mm) 37
Holding Torque(N.cm) 23
Control Wires 6
Insulation Resistant 500V  DC  100 MOhm Min
Insulation Strength 50Hz  1Minute  500V Min
Ambient Temperature -20°C~+50°C
Temperature Rise 80°C Max.
Radial Play 0.02mm Max.
End Play 0.1-0.3mm

Wiring Diagram

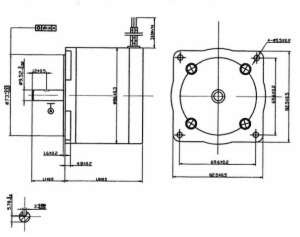

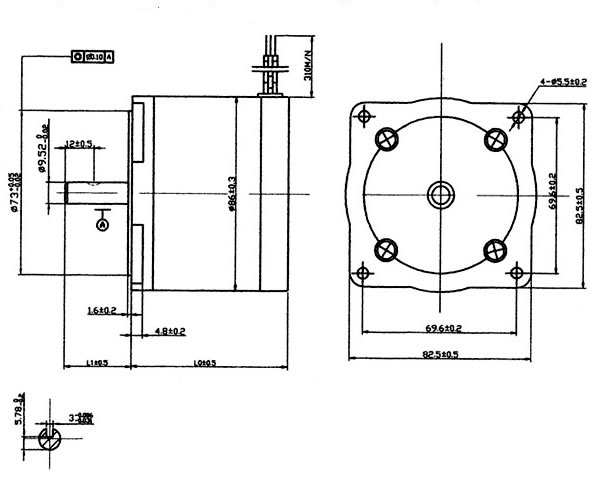

Mechanical Dimensions (Click on image to enlarge)
