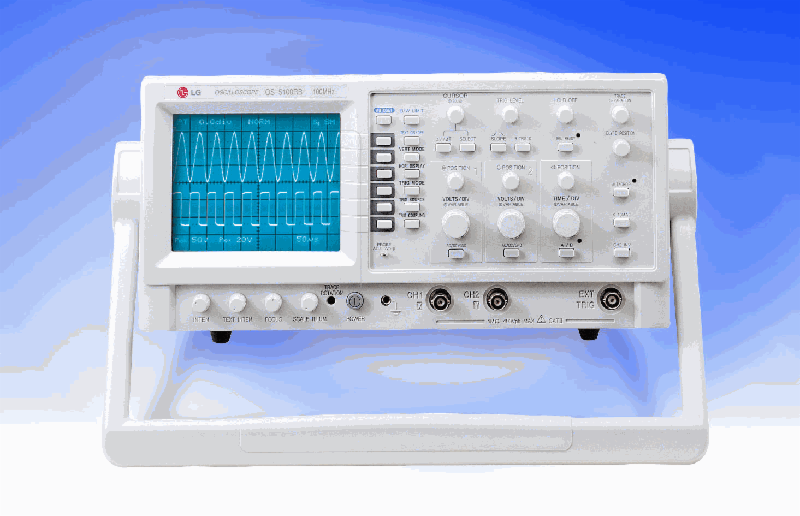

100 MHz Cursor Readout Oscilloscope, 2CH/4Trace, Autoset

• DC to 100MHz bandwidth, 2 channels, 4 trace
• 6" rectangular CRT with internal graticule
• HF / LF reject trigger filter
• Auto set function
• Frequency counter function (only on auto set)
• Readout cursor function
• 5ns / div. fast sweep rate
• Ch 1 output
• Delay sweep function
• Hold-off function
• Dual time base

 - Configuration and         : 6 inch rectangular screen with internal graticule,    useful screen               8X10div. (1div = 1cm) marking for measurement of rise time,                                2mm subdivisions along the central axis.                               - Acceleration potential    : +11.5kv approx.(ref. Cathode) - Phosphor                  : P31 - Focusing                  : provided with auto focus correction circuit - Trace rotation            : provided - Intensity control         : provided

 - Input signal              : positive going signal decreases +5Vp-p or more signal                                cases intensity noticeable modulation at normal                               intensity setting - Bandwidth                 : DC to 2MHz(-3dB) - Coupling                  : DC - Input impedance           : 20kΩ - 30kΩ typical - Maximum input voltage     : 30V(DC + peak AC)

 - DC coupled(-3dB)          : DC to 100MHz normal / DC to 50MHz with 2mV/div - AC coupled(-3dB)          : 10Hz to 100MHz normal / 10Hz to 50MHz with 2mV/div  - Modes                     : CH1, CH2, DUAL, ADD, CHOP, ALT, CH2 INV - Deflection factor (normal): 2mV/div. to 5V/div. in 11 calibrated steps of 1-2-5 sequence.                               (Ch3, Ch4 : 0.1V/div to 0.5V/div.)                                Continuously variable between steps at least 1:2.5 X 5.  - Accuracy                  : normal ±3%,  - Input impedance           : approx. 1MΩ in parallel with 25pF  - Maximum input voltage     : direct 400V (DC + peak AC)  - Input coupling            : AC, GND, DC  - Rise time                 : 3.5ns or less (7ns or less 2mV/div.)  - CH1 output                : 50mV/div. into 50Ω / DC to 20MHz(-3dB)  - Polarity inversion        : CH2 only - Signal delay              : delay cable installed

 - Sweep mode                : A, B, B triggered, X-Y, ALT - Time base A               : 50ns/div. to 0.5s/div. in 22 calibrated                                steps of 1-2-5 sequence uncalibrated continuous                                control between steps at least 1:2.5 - Hold-off time on          : variable with the hold-off control time base A                              - Time base B               : 50ns/div. to 0.5s/div. in 22 calibrated steps of                                1-2-5 sequence  - Delay sweep on time base B: 1div. or less / 10 div. or more - Sweep magnification       : 10 times(maximum sweep rate : 5ns/div.)  - Accuracy                  : ±3%, ±5%(1:10 Probe)

 - Modes                    : AUTO, NORM, TV-V, TV-H, Single - Source                   : CH1, CH2, LINE, VERT - Coupling                 : AC, DC, HF-R, LF-R - Slope                    : + or - - Sensitivity and frequency: 0.5div. in INT / 0.15mVp-p in EXT / 1.5div. in VERT in AUTO, NORM DC - 10MHz    - Sensitivity and frequency: 1.5div. in INT / 0.6Vp-p in EXT / 30.0div. in VERT in AUTO, NORM 10MHz - 100MHz - Sensitivity and frequency: 1.0div. or more 0.1V(trigger part) in TV-V and TV-H  - External trigger         : approx. 1MΩ in parallel with 25pF input impedance  - Maximum input voltage    : 400V (DC + AC peak)

 - Sensitivity              : same as vertical deflection for both X-axis(CH1)                               except accuracy ±6% in X-axis from                              DC~2MHz(-3dB), Y-axis is same as CH2 - X-Y phase difference     : 3° or less as DC to 100kHz

 - Cursor readout function  : ΔV, ΔT, Δ1/T - Auto setup               : available from 100Hz to 50MHz - Frequency counter display: available only on auto setup mode - Resolution               : 1/100 div.

 - Probe adjustment         : approx. 1kHz frequency, 0.5V(±3%)                               square wave with 50% duty ratio

 - Line voltage range       : 90~250V with 250V 1.6A time lag type fuse  - Line frequency           : 48~440Hz - Power consumption        : approx. 50W

 - Weight                   : 8kg - Dimension                : 328mm(W) X 153mm(H) X 392mm(L)

 - Accessories included     : Operation manual, Spare fuse, Power cord - Optional accessories     : Probe   (sold separately)
