16Ch 16-Bit Voltage Output D/A Card

Availability:

Available For Back Order

Item: PCI-6216V

Quantity	Price
1	$ 775.000

Quantity : 0 In Stock

Add To Cart

Continue Shopping

Very Important Information for LabVIEW? Users !

LabVIEW? is a registered trademark of National Instruments?.

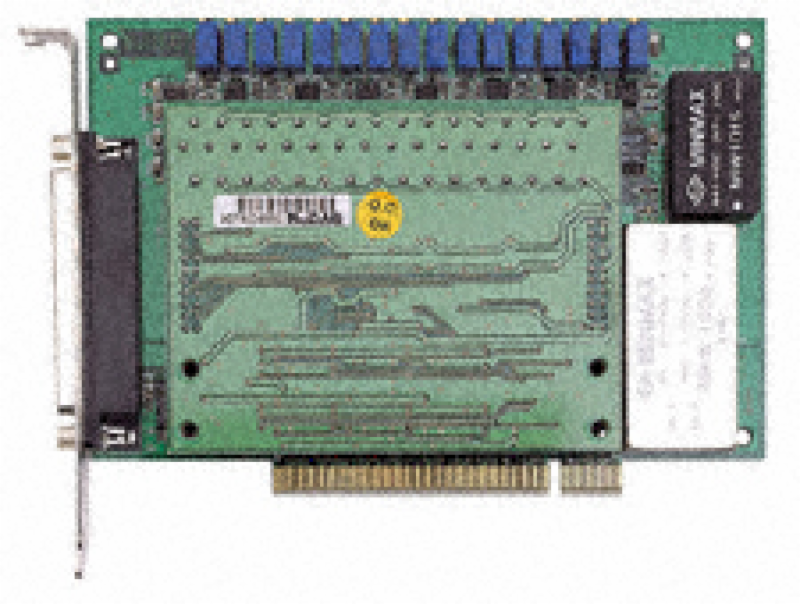

The PCI-6216V is a high-performance,16-bit analog output PCI board. All of the PCI-6216 analog output channels are identical. Each is equipped with the PCM-56 which is a state-of-the-art, fully monotonic, digital to analog converter. This device employs ultra-stable nichrome (NiCr) thin-film resistors to provide monotonicity, low distortion, and low differential linearity error over long periods of time.

32-bit PCI-Bus, Plug and Play
16-CH 16-bit high resolution voltage output
Output Range: ±10V (14-bit resolution guaranteed)
0.01% of FSR typ. Differential linearity error
2 µs settling time (10V step)
On board DC-to-DC converter
Complies with PCI local bus specification
Extended to 16 CH Voltage outputs
Windows 3.11, Win-95, and Win-NT driver

Manual	PCI-6216V
DOS Drivers	Borland C Microsoft C Library
W95 Drivers	Windows 95
W98/2000/NT/Linux Data Acquisition Software Kit	2000-DASK WNT-DASK W98-DASK Linux-DASK
LabVIEW Interfaces	2000-LVIEW WNT-LVIEW W98-LVIEW W95-LVIEW
DDE Server	2000-DDE WNT-DDE W98-DDE
HP-VEE	W95-VEE WNT-VEE W98-VEE

View Product Data Sheet
