32-CH PhotoMos Relay Outputs & 2-CH Isolated DI Card

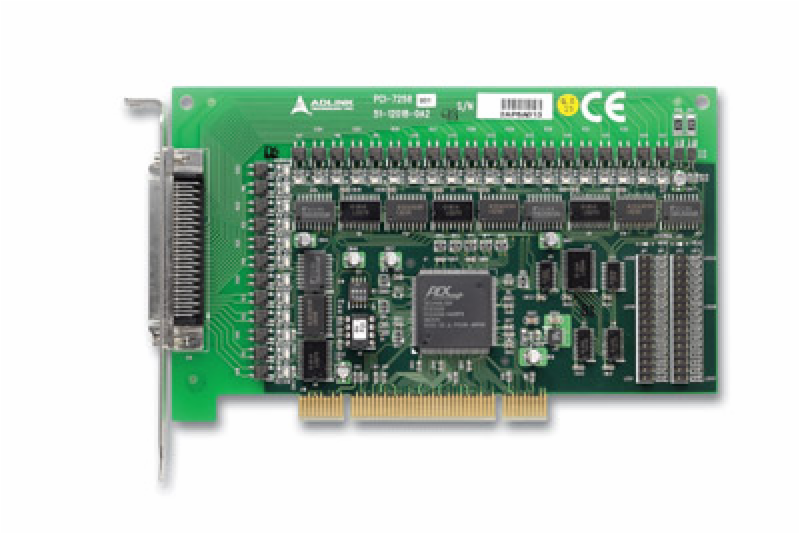

ADLINK PCI-7258 is a 32-CH PhotoMos relay and 2-CH isolated digital input card. The 32 PhotoMos relay outputs on the PCI-7258 can switch external devices, including those requiring high input voltage or AC/DC signal at different levels. PhotoMos relays feature long mean-time-between-failure (MTBF) coming from the solid-state process. It makes the PCI-7258 ideal in various applications, such as semiconductor applications, telecommunications, instrumentations, medical equipments and machine automation. The 2-CH isolated digital inputs on the PCI-7258 can sense the status of external inputs. The PCI-7258 can generate an interrupt when one or both inputs change from low to high. Using these interrupts well can release your computer from a heavy burden in dealing with digital input data.

• Supports a 32-bit 3.3 V or 5 V PCI bus
• 32-CH long-life PhotoMos relay outputs
• Relay output status read back
• 1500 VRMS optical isolation for relay outputs
• On-board LED indicators for relay status
• On-board connectors for external LED connection
• On-board relay driving circuits
• 2-CH isolated digital inputs
