80MB/Sec 32Ch Digital Input / 32Ch Output Card

Very Important Information for LabVIEW™ Users !

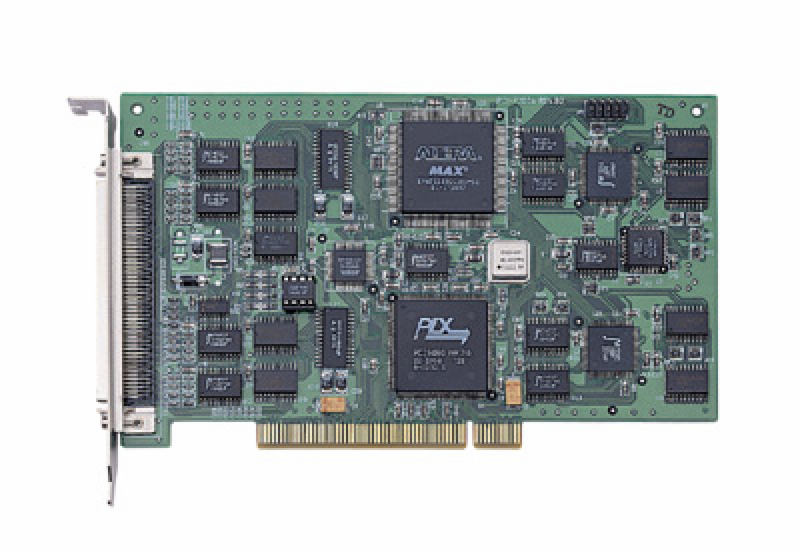

The PCI-7300A is PCI form factor ultra-high speed digital I/O card; it consists of 32 digital input and/or output channel. High performance designs and the state-of-the-art technology make this card to be ideal for high-speed digital input and output applications.

• 32-bit PCI-Bus, Plug and Play
• Multi-I/O port configurations includes 16DI & 16 DO, 32DI or 32 DO
• Up to 80M Bytes/sec data transfer rate
• Bus-mastering data transfer with scatter gather technology
• On-board internal timer pacer digital input or digital output trigger
• On board two 32K words FIFO for DI and DO channels
• Multi-configurations are suitable for digital wave form generator
• ACK and REQ for handshaking data transfer
• Multiple interrupt sources are selectable by software
• Compact size-only half-size PCB
• Rugged 100-pin SCSI-II connector
• Active terminators for high speed and long distance data transfer
