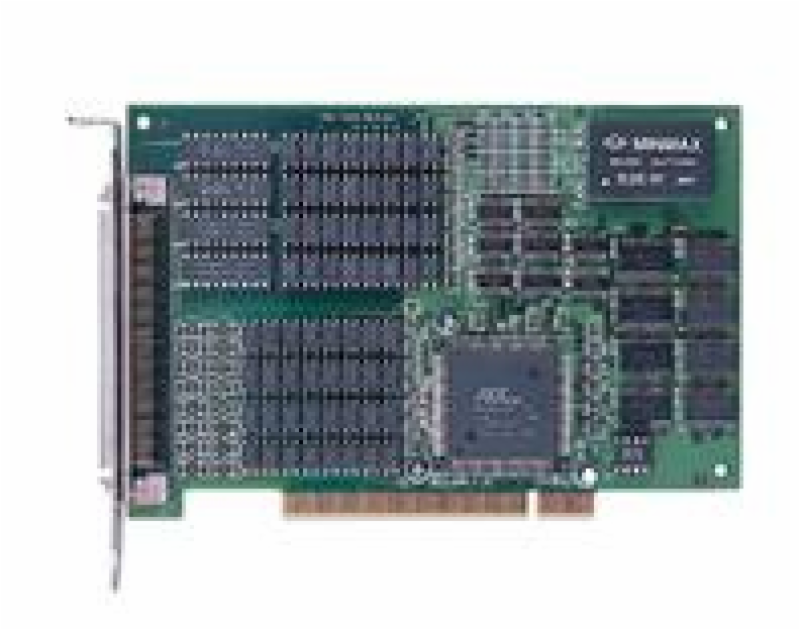

32Ch Isolated DI & 32Ch Isolated DO Card

Very Important Information for LabVIEW™ Users !
LabVIEW™ is a registered trademark of National Instruments™.

The highest density isolated DIO PCI card available. I/O ports are accessed by 32-bit I/O instructions, thus increasing data throughput. 32ch 5000Vrms photo-isolated digital input channels. 32 isolated digital output channels are driven by Darlington transistors capable of 500mA current sink suitable for driving relays.

• 32-bit PCI Bus, Plug and Play
• High Density Isolated DIO card
• Isolated 32 DI & 32 DO Channels
• 5000 Vrms high isolation voltage
• 500mA high driving sink current on isolated output channels
• Up to 24V voltage input for isolated input
• Two external interrupt sources and dual interrupt system
• Rugged 100-pin SCSI-II connector
• Compact size (suitable for any size of chassis)

View Product Data Sheet
