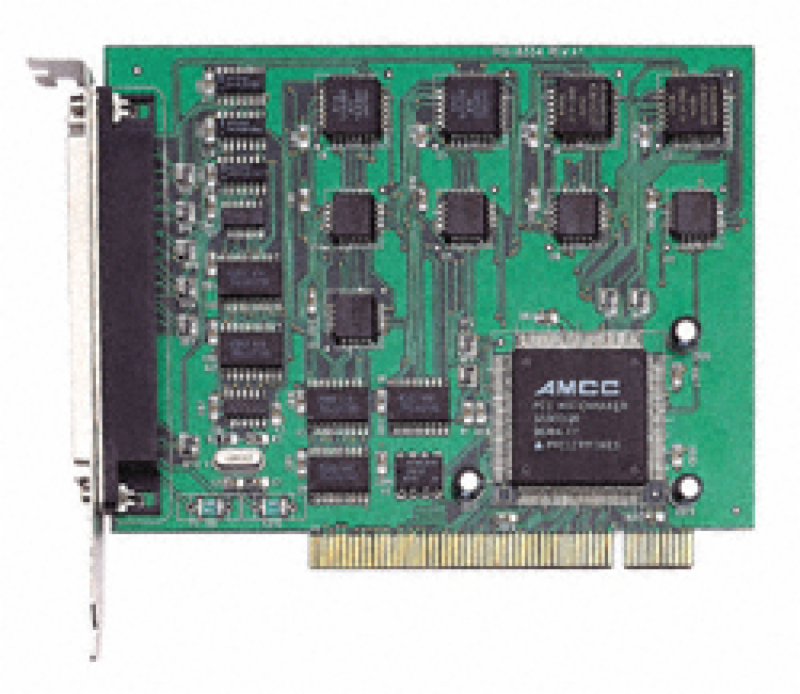

12Ch Timer/Counter & DIO Card

Very Important Information for LabVIEW™ Users !
LabVIEW™ is a registered trademark of National Instruments™.

• 32-bit PCI Bus, Plug and Play
• Four 82C54 Timer/Counter chips on board
• 10 independent 16-bit down counters
• 2 cascaded counters based on 8 MHz system clock
• Programmable four clock sources for every counter
• De-glitch filter for external clock input signals and external interrupt signal
• De-glitch clock frequency is programmable
• General purpose 8 TTL DI & 8 TTL DO
• Dual interrupt system
• Provide protected 5V and 12V power supply
• Compact half-size PCB
• 100-pin rugged SCSI-II connector
