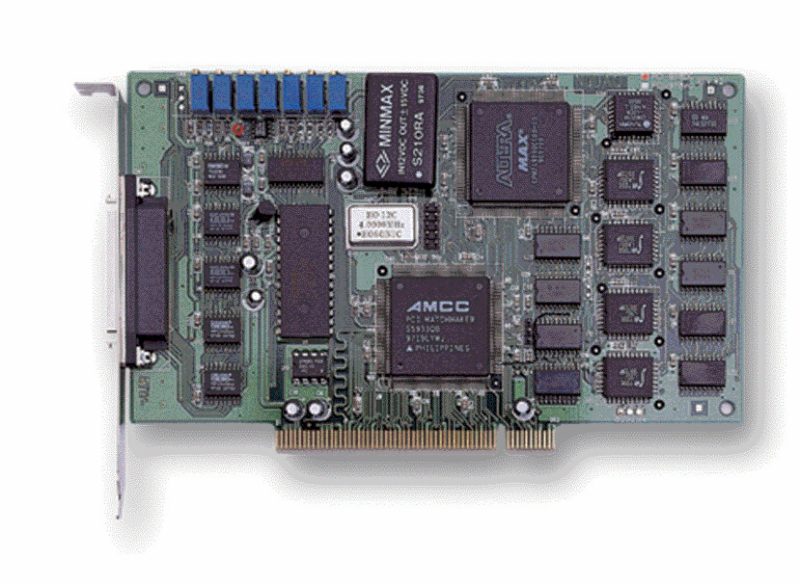

16-CH 12-Bit 333 kS/s Normal-Gain Analog Input Card
Availability: Available For Back Order
Item: PCI-9118DG/L
Quantity      Price
1      $ 629.000
Quantity :     0 In Stock

Add To Cart

Continue Shopping

Very Important Information for LabVIEW? Users !
LabVIEW? is a registered trademark of National Instruments?.

The PCI-9118DG/L features 12-bit resolution with a sampling rate up to 333kS/s. The 256-location channel-gain queues allows high-speed data acquisition with different gains on each channel and non-sequential order of automatic analog input scanning capability. The on-board 1k-sample A/D FIFO ensures reliable high-speed data acquisition under Windows operating system. The data can be transferred through bus-mastering DMA with gap-free, continuous high throughput, even for a large amount of data. This analog Input card delivers cost-effective and reliable data acquisition capabilities for a broad variety of applications.



  • 12-bit A/D resolution
  • Plug and Play
  • Up to 333 kS/s sampling rate
  • Continuous, gap-free, high speed under Win-NT/95
  • 16 single-ended or 8 differential inputs
  • Trigger modes software, pacer, and external trigger (5V/TTL compatible)
  • Number of channels: 4 inputs and 4 outputs
  • FIFO buffer size: 1k samples
  • Data transfers polling, interrupt, bus mastering DMA
  • Conversion time: 3µs
  • 256-configuration channel-gain queue, on-board 1 k-sample A/D FIFO
  • Bipolar or Unipolar analog input ranges
  • Bus mastering DMA for analog inputs
Manual PCI-9118DG/L
LabVIEW
Interfaces		 2000-LVIEW
WNT-LVIEW
W98-LVIEW
W95-LVIEW
