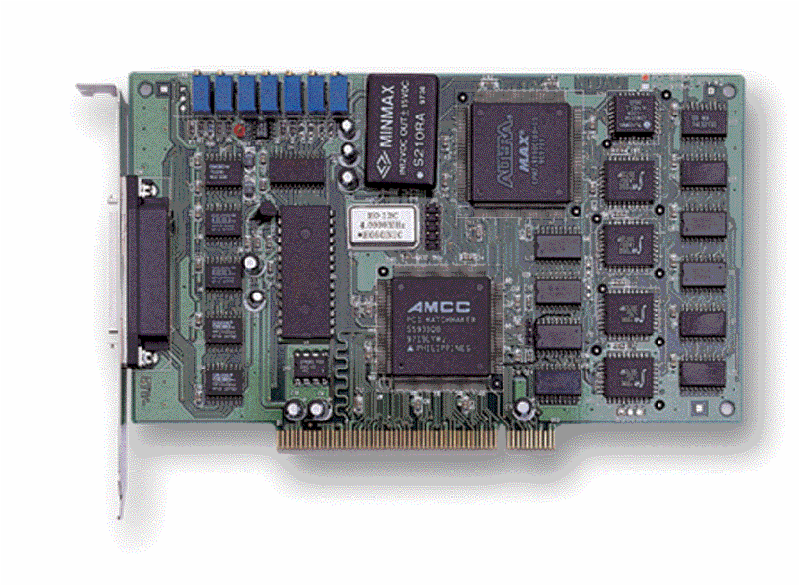

333KHz 16Ch High Speed A/D Card (High Gain)

Availability:

We are sorry, but this item has been Discontinued

Item: PCI-9118HG

Quantity	Price
1	$ 744.000

Very Important Information for LabVIEW™ Users !

LabVIEW™ is a registered trademark of National Instruments™.

Up to 333K S/s High Throughout A/D
Plug and Play
Digital & Analog Trigger Supported
Continuous, gap-free, high speed under Win-NT/95
Functions fully compatible with MetraByte DAS-1800 Series
Bus Mastering DMA
32-bit PCI-Bus, plug and play
12-bit analog input resolution
On-board A/D 1K FIFO memory
Channel-Gain queue for high speed acquisition at different gains
Up to 330KHz A/D sampling rates
16 single-ended or 8 differential analog input channels
Bipolar or Unipolar input signals
Programmable gain of x1, x10, x100, x1000
Programmable burst mode sampling emulates simultaneous sample & hold
Two 12-bit high speed analog output channels (3_ sec)
4 digital input and output channels
Three A/D trigger modes: software trigger, programmable pacer trigger, and external pulse trigger
50-pin D-type connector
Compact size: half-size PCB

Manual	PCI-9118HG
DOS Drivers	Borland C Microsoft C Library
W95 Drivers	Windows 95
W98/2000/NT/Linux Data Acquisition Software Kit	2000-DASK WNT-DASK W98-DASK Linux-DASK
LabVIEW Interfaces	2000-LVIEW WNT-LVIEW W98-LVIEW W95-LVIEW
DDE Server	2000-DDE WNT-DDE W98-DDE
HP-VEE	WNT-VEE W98-VEE
