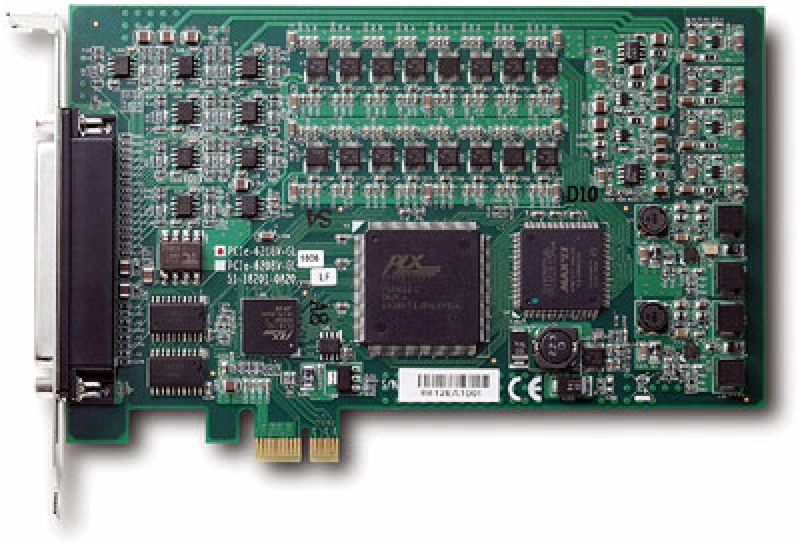

16-CH 16-Bit PCI Express® Analog Output Card

Features

• x1 PCI Express® Interface
• 4-CH TTL digital inputs and 4-CH TTL digital outputs
• Bipolar analog output range
• 16-CH voltage outputs (PCIe-6216V-GL)
• 16-bit D/A resolution

Introduction

ADLINK PCIe-6216 series is a 16-CH, 16-bit, PCI Express analog output card. The PCIe-6216V-GL offers 16 voltage outputs with ±10 V range, featuring 15-bit monotonicity and 10 V/μs slew rate. The on-board analog switches minimize the power-on glitches. ADLINK PCIe-6216 series devices provide high resolution, high-density analog output functionalities and are suitable for ATE, signal generation, industrial process control, servo control and other industrial control applications.
