PCI Express 80 MB/s High-Speed 32-CH Digital I/O Card

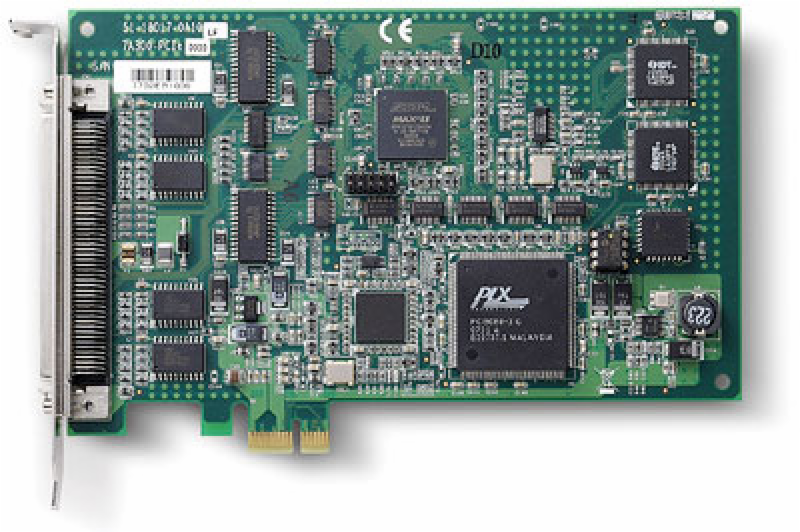

PCIe-7300A
80 MB/s High-Speed 32-CH Digital I/O PCI Express Card


Features

• x1 lane PCI Express® interface
• Multiple I/O port configurations: 16-CH DI & 16-CH DO, 32-CH DI or 32-CH DO
• Data transfer rate up to 80Mbytes/s
• Bus-mastering DMA with scatter-gather technology
• On-board internal timer pacer for clocked DIO
• On-board 32k words FIFO
• ACK and REQ signals for handshaking data transfer

Introduction

ADLINK PCIe-7300A is an ultra-high-speed digital I/O card. It consists of 32 digital input/output channels. High performance designs and state-of-the-art technology make this card ideal for a wide range of applications, such as high-speed data transfer, digital pattern generation and digital pattern capture applications, and logic analyzer applications. Trigger signals are available to start the data acquisition of pattern generation.
