1-CH PCI Express® x4 Camera Link® Full Configuration Frame Grabber

PCIe-CML64F
1-CH PCI Express® x4 Camera Link® Full Configuration Frame Grabber

Features

• 1-CH Camera Link® Full configuration
• PCI Express® x4 interface
• Customizable FPGA-based pre-processing core (60 K logic elements, 128 MB DDR RAM Buffer for PCIe-CML64FP)
• High-speed image transfer rates up to 680 MB/sec per channel
• Acquisition pixel clock rates up to 85 MHz
• 128 MB DDR SDRAM on-board memory

Introduction

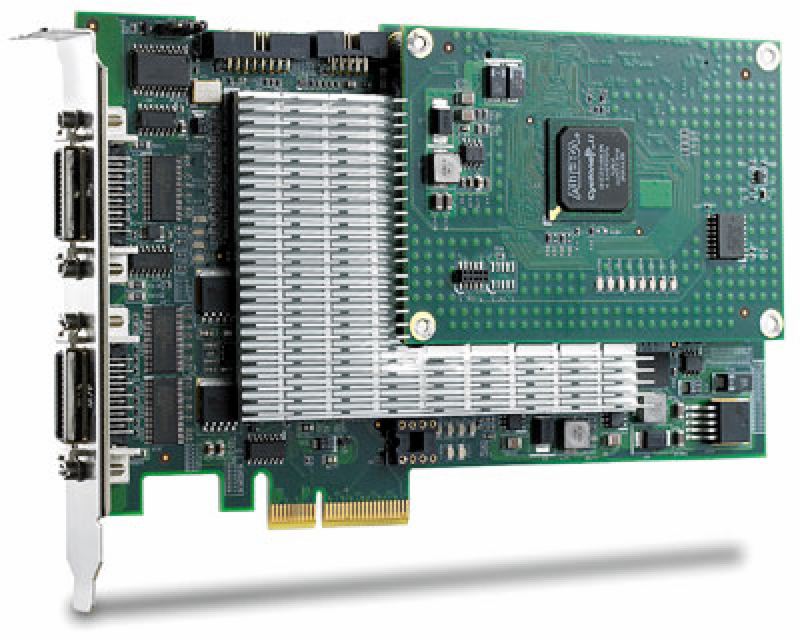

ADLINK PCIe-CML64FB/FP is a Camera Link® frame grabber based on the PCI Express® x4 interface that supports one base/medium/full configuration Camera Link® color and/or monochrome cameras. It delivers all the advantages of the PCI Express® bus while acquiring at the maximum Camera Link® rate of 680 MB/s across the x4 lane, and can handle most of the frame and line scan cameras including the complete image reconstruction from outputs using muiltiple taps. The PCIe-CML64FB/FP utilizes FPGA based (Filed Programmable Gate Array) design for greater image acquisition flexibiliry, high performance, and improved pre-processing functionality (PCIe-CML64FP). The PCIe-CML64FB/FP has been built within Up/down counter technology to control and correct image acquisition process from the external encoder input.
