2-CH PCI Express IEEE 1394b Frame Grabber

PCIe-FIW62
2-CH PCI Express® IEEE 1394b Frame Grabber

Features

• 2-CH IEEE 1394b (FireWire 800 ) ports
• PCI Express® x1 compliant
• High-speed image transfer rates up to 800 Mb/s
• Industrial screw lock connector
• Channel status LEDs
• Power supplied to the IEEE 1394b connectors

Introduction

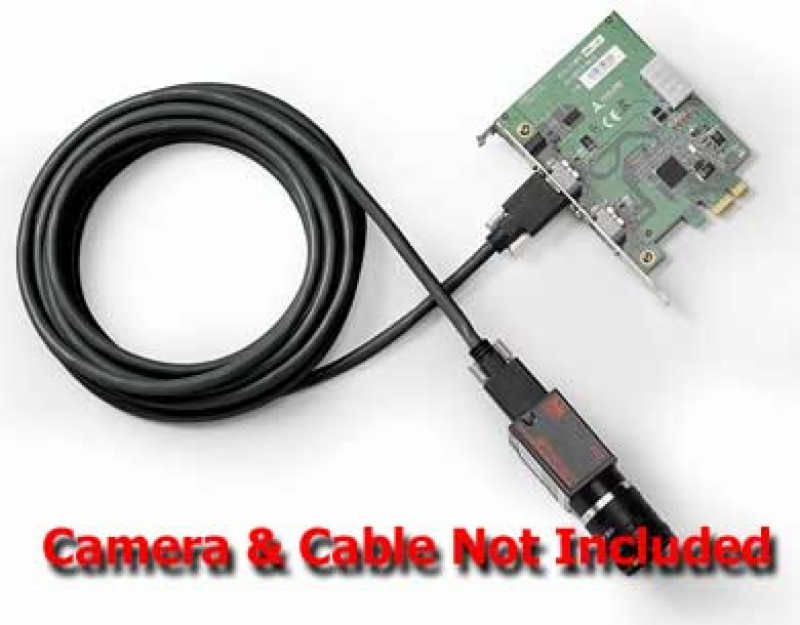

The PCIe-FIW62 is an IEEE 1394b (FireWire 800) interface card which provides 2 high-speed FireWire 800 ports with data transfer rates up to 800 Mb/s on a PCI Express® x1 lane. The PCIe-FIW62 provides two direct-connect IEEE 1394b bilingual connectors with a screw-lock mechanism. These screw-lock connectors provide a reliable connection between the PCIe-FIW62 and up to two IEEE 1394b cameras. A 4-pin ATX power connector on the PCIe-FIW62 supports IEEE 1394b cameras that draw power directly from the frame grabber. Each port has a green LED on the front panel that will illuminate when the PCIe-FIW62 is connected to a IEEE 1394b camera for convenient identification of channel connection status.
