4-CH PCI Express IEEE 1394b Frame Grabber

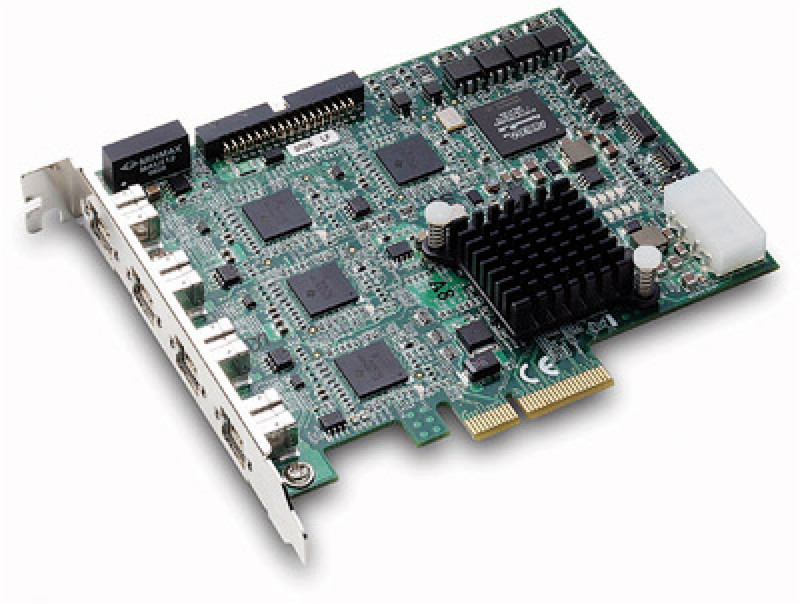

PCIe-FIW64
4-CH PCI Express® IEEE 1394b Frame Grabber

Features

• PCI Express® x4 compliant
• High-speed image transfer rates up to 800 Mb/s
• Provides industrial screw lock connector
• Status LED for channel activation
• Four isolation digital inputs/outputs
• Four isolation TTL level programmable trigger output pulses
• Supports Windows® XP/XP Embedded/Vista

Introduction

The PCIe-FIW64 is IEEE 1394b (FireWire 800) interface card designed for high speed computer-based machine vision application. The PCIe-FIW64 supports four 1394b (FireWire 800) ports for multiple1394b device connections with data transfer rates up to 800 Mb/s, like most of the IEEE 1394b cameras. The PCIe-FIW64 provides four isolated digital inputs and outputs to connect to external devices such a position sensor. The PCIe-FIW64 also includes four isolated programmable trigger output pulses to manage trigger events such as activating a strobe light.
