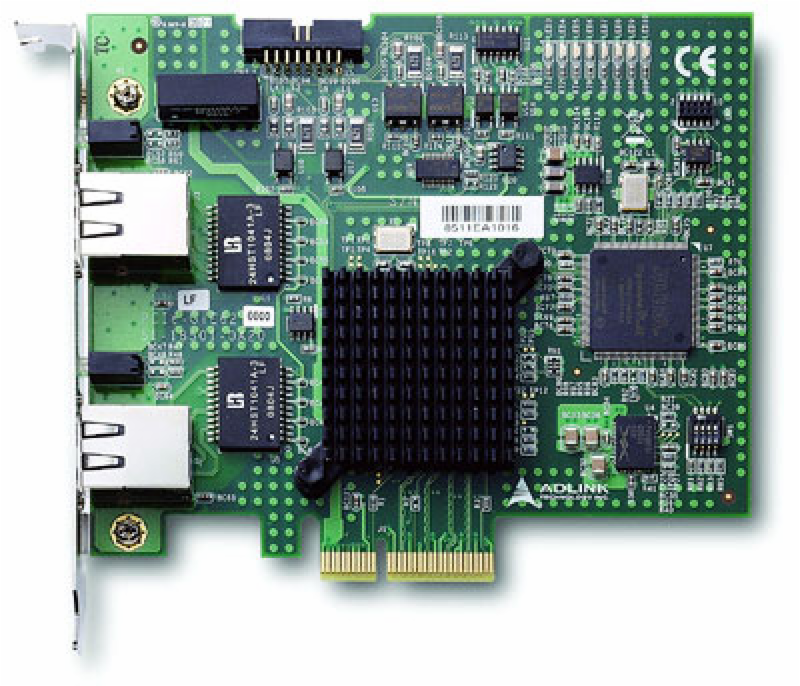

PCI Express 2-CH Gigabit Ethernet Vision Interface Card

PCIe-GiE62
2-CH Gigabit Ethernet Vision Interface Card with Trigger, and I/O

Features

• Supports two independent GbE ports
• Supports jumbo frames (9 KByte)
• PCI Epxress® x4 compliant
• Provides Industrial screw lock connector
• 2 isolation digital inputs/outputs
• 2 isolation TTL level programmable trigger output pulses
• Supports windows® XP/XP embedded/Vista

Introduction

ADLINK PCIe-GIE62 is a PCI Express® x4 lane, Gigabit Ethernet (GbE) network interface card (INC), which supports 2 independent Gigabit Ethernet ports for multiple Gigabit Ethernet Vision device connection with data transfer rates up to 1000 Mb/s, like most of the Gigabit Ethernet cameras. The PCIe-GIE62 provides two isolated digital inputs and outputs for connecting to external devices such position sensors. The PCIe-GIE62 also includes two isolated programmable Trigger output pulse to manage trigger events such as activating a strobe lighting.
