4-CH PCI Express x1 Frame Grabber

PCIe-RTV24

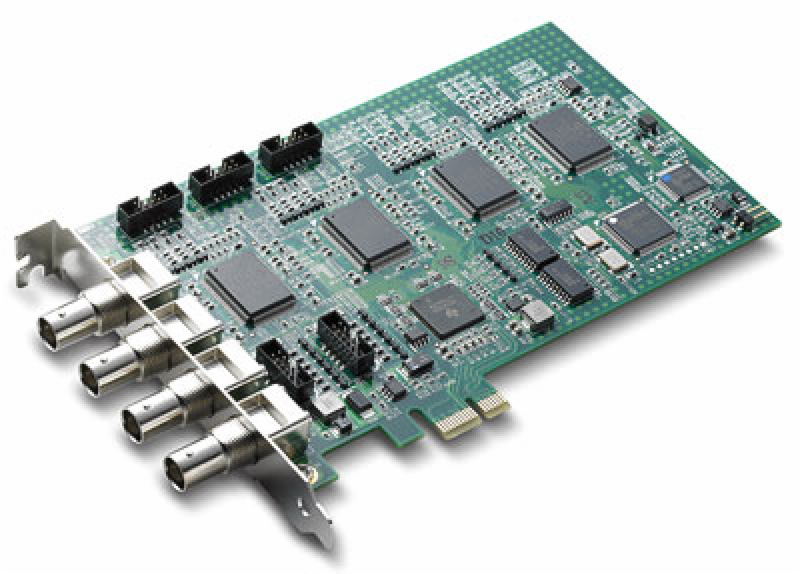

4-CH PCI Express® x1 Frame Grabber

Features

• Four color video digitizers operating in parallel
• PCI Express® x1 lane, up to 120 fps
• Color (PAL⁄NTSC), monochrome (CCIR⁄EIA) camera supported
• Up to 16 channels extension
• On-board TTL I⁄O lines
• Built-in watchdog timer
• User friendly ViewCreator utility
• Software trigger supported

Introduction

PCI Express® (or PCIe) is the latest standard serial interconnect architecture, offering high performance on standard PCs, now being used on vision application for higher data transfer rates The PCIe-RTV24 provides four digitizer vision stream for real-time image acquisition, acquisition speed up to 30 fps per channel. The output format of RTV series are RBG24/RGB16, and Y8, these are popular color formats in machine vision, and surveillance, besides the image function, the PCIe-RTV24 also provides 4-channel Digital Inputs/Outputs, and watch dog function, these I/O can be used for strobe light control, trigger acquisition or report alarm signals The operation system support is available for Microsoft Windows®XP, Windows®Vista, and Linux, the software support of RTV series are Microsoft DirectX, Video for Linux, and VIs for NI®Labview.
