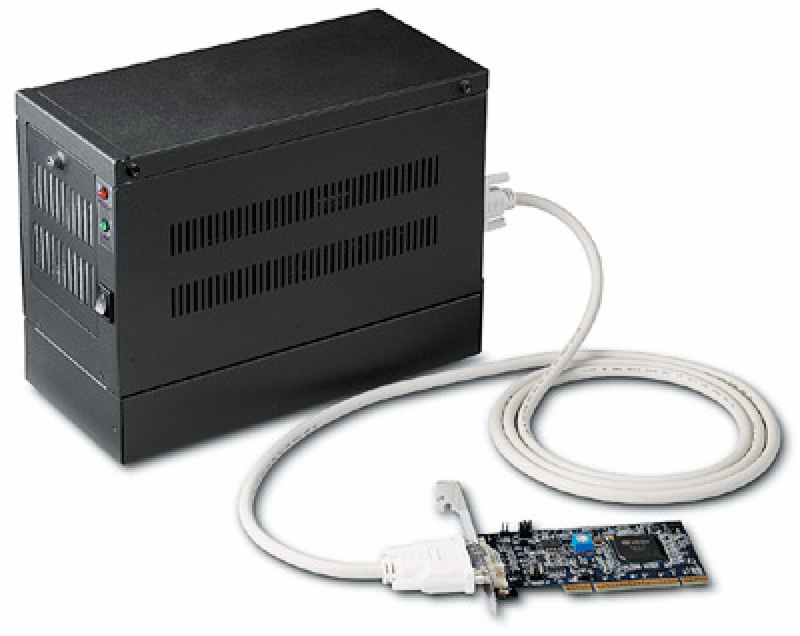

4-Slot PCI-to-PCI Expansion System

PCIS-8580-4S
4-Slot PCI-to-PCI Expansion System

Features

• Provides 4 extended PCI slots
• Full 32-bit/33MHz PCI bandwidth extension (132MB/s)
• Maximum 10m extension distance
• Complete hardware and software transparency
• Compliant with PCI local bus specification rev 2.2
• Compliant with PCI bridge architecture specification rev 1.2
• 24-pin DVI-D connector for robust connectivity
• Shoebox size wall-mount chassis with built-in 200W power supply

Introduction

The PCIS-8580-4S can expand 4 additional 5V PCI slots to your computer through a cable connection. Any PCI I/O cards, image capture cards, data acquisition cards, or motion control cards in an expansion chassis which is 10 meters away from your host computer. The PCIS-8580-4S is particularly useful for users who need extra 5V PCI slots, or want to place I/O devices in a hazardous environment or away from host computer. The PCIS-8580-4S utilizes the state-of-art ??serialized bridge??technology to expand the PCI bus. PCI bus signals are serialized and transmit in 4-paris, 622Mbps LVDS signals to provides a full 132MB/s PCI bandwidth and a maximal 10 meters expansion distance through a robust cable connection. Furthermore, the PCIS-8580-4S works as standard PCI bridges and is transparent to your computer system. That is, all your applications and drivers can be easily migrated to the PCI-to-PCI expansion system without any modification.
