LED Digital Panel Meter with 5V Common Ground

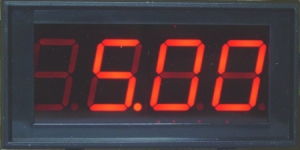

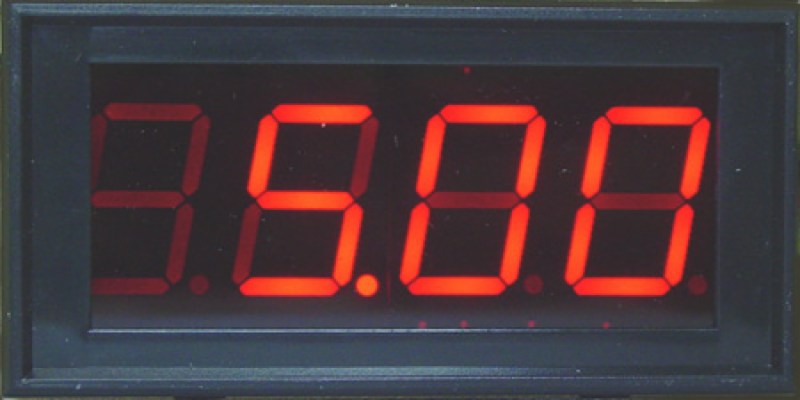

We provide two versions of this JUMBO sized LED display. The PM-1029A is designed to run off of a 9V (7-11V) independent power source. The PM-1029B is a 5V common ground version. The figure height is 20.3mm.

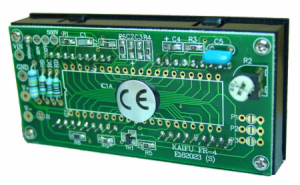

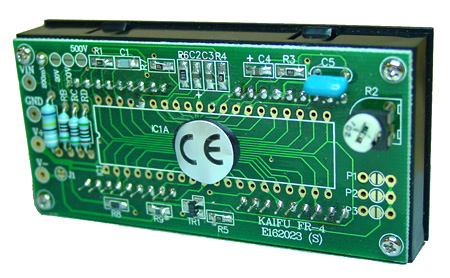

High quality SMT construction provides high reliability and the decimal point selection is conveniently done by wire jumpers. These panel meters implement dual slope integration A-D conversion measuring methods. The PM-1029A and PM-1029B come in an easy to install "snap-in" mountable bezel (typical rectangular hole size 88mm x 41mm).

• Jumbo LED display, 20.3mm Figure Height
• Single 5 Volt Common Ground (PM-1029B) or 9V Independent Power Supply (PM-1029A)
• Voltage Divider Resistors included and max. Measured Range Selectable by Soldering a Selection Joint
• Easy Bezel Snap-In Design (84mm x 41mm rectangular hole typical)
• Decimal point selectable by jumping on PCB
• Automatic Polarity indication
• Guaranteed zero reading for 0 volt input
• High input impedance (>10MW)

Applications:

• Voltmeter
• Thermometer
• PH Meter
• DB Meter
• Watt Meter
• Current Meter
• Capacitance Meter
• Lux Meter
• LCR Meter

• Other Industrial & Domestic Uses
