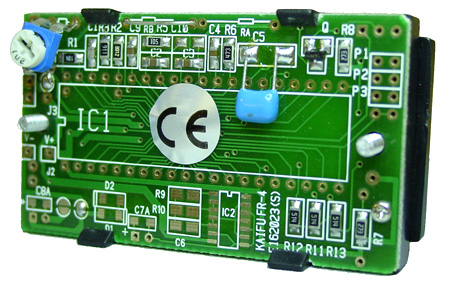

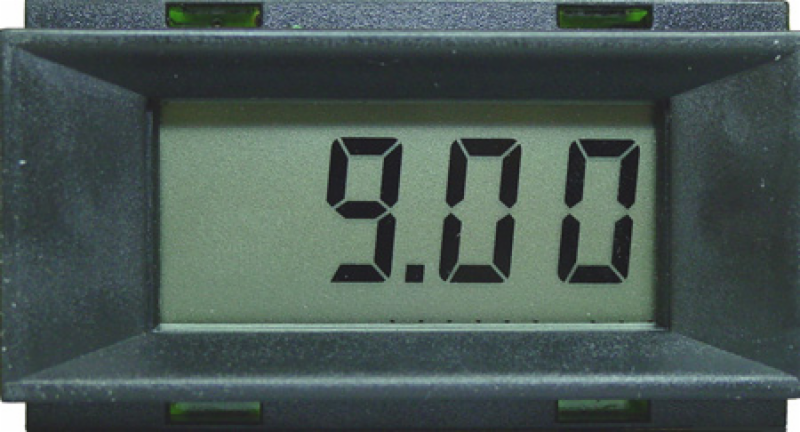

3-1/2D LCD Digital Panel Meter

Don't let the prices fool you. These digital panel meters are not surplus. so even if you design them into an ongoing manufactured product, you can be assured of continued availability. These high quality digital panel meters are decimal point selectable with guaranteed zero reading at zero volts input.

Features:

• 200.0mV full scale input sensitivity
• Single 9V DC operation (independent 7-12VDC)
• Decimal point selectable
• 13mm LCD figure height
• Guaranteed zero reading for 0 volt input
• Automatic polarity indication
• High input impedance(>100 Mohms)

 Applications Include:

• Voltmeter
• Thermometer
• pH Meter
• dB Meter
• Watt Meter
• Current Meter
• Capacitance Meter
• LUX Meter
• LCR Meter
• Other Industrial
• & Domestic Uses

View Product Specifications
