Home - Test Equipment- DIGITAL MULTIMETERS- Digital Clamp Meters- Digital Clamp Meter (CSI2000G)

FREE GIFT with qualifying purchase, CLICK for more information.

Digital Clamp Meter (CSI2000G)

Part Number: CSI2000G
Price: $33.95
Save 42.5%!
0 IN STOCK
Quantity:

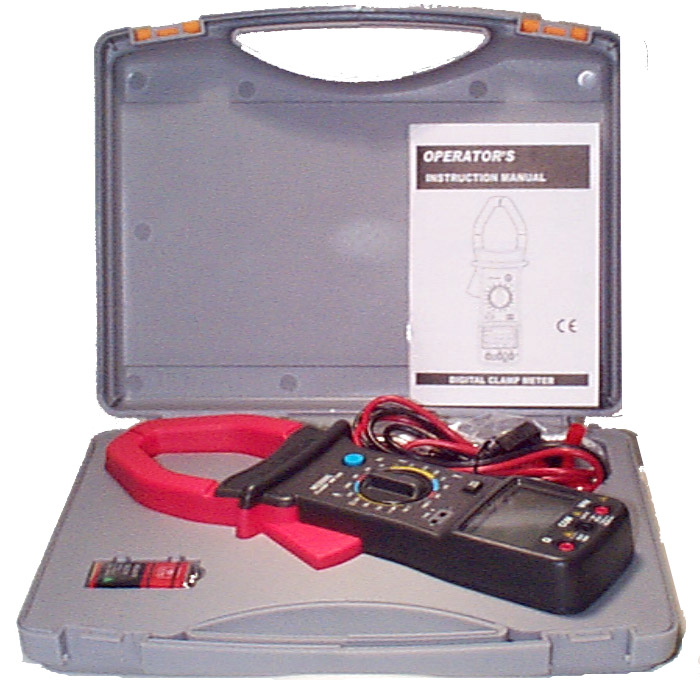

This is a professional quality digital clamp meter. Sometimes customers call us after they receive one and tell us that they are really amazed that the CSI2000G is as good as it is considering the low selling price. Includes a plastic blow molded carrying case . It uses a standard 9V battery (supplied) & ships with test leads & a K-type temperature probe. An optional AC current line splitter is available (M920) which can be used to separate the positive and neutral conductors of a power cord when testing AC amperage draw.

CE (EMC), UL, CE (LVD)

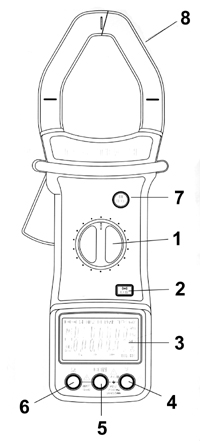

  1. Function Switch
  2. Back Light Button
  3. LCD Display
  4. V Input Jack
  5. Com Jack
  6. Ohms Input Jack
  7. Hold Button
  8. Transformer Jaws

Specifications



Range Resolution
DCV 2V 1mV ±0.5% of rdg ±1 digit
20V 10mV
200V 0.1V
1000V 1V ±1.0% of rdg ±2 digits
ACV 200V 0.1V ±1.0% of rdg ±3 digits
750V

1V

OHM

200ohm 0.1ohm ±1.0% of rdg ±3 digits
20kohm 10ohm ±1.5% of rdg ±15 digits
2Mohm 1kohm
ACA 200A 0.1A ±3.0% ±5
1000A 1A
Hz 2kHz 1Hz ±2.0% ±5
20kHz 10Hz ±1.5% ±5
°C 750°C 1°C 0°C to 400°C:
±1% ±3
401°C to 750°C:
±2.0% ±1
°F 1400°F 1°F 32°F to 752°F:
±1.0% ±3
754°F to 1400°F:
±2.0% ±1
                         Diode Test provided
                   Audible Continuity provided
                         Data Hold provided
                        Back Light provided
